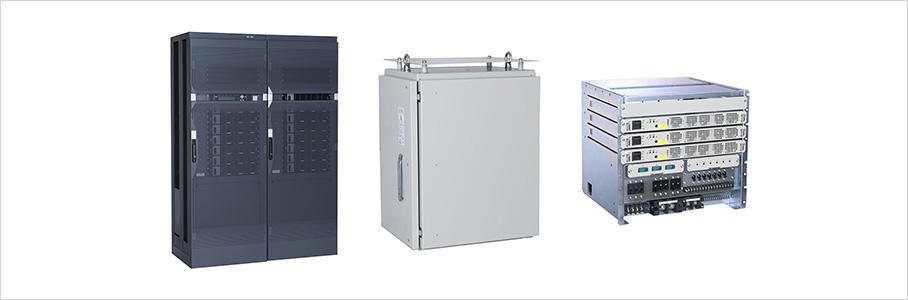

The AC/DC Converters (48 VDC) we have developed for the communication market are mainly used as power supplies for communication devices such as servers, routers, and switching devices for communication carriers. They take AC power input from the system and output DC at voltages suitable for various loading devices. They are mainly 48 VDC output/ 6 A to 4800 A class custom products.
Communication Station
Large
Overview

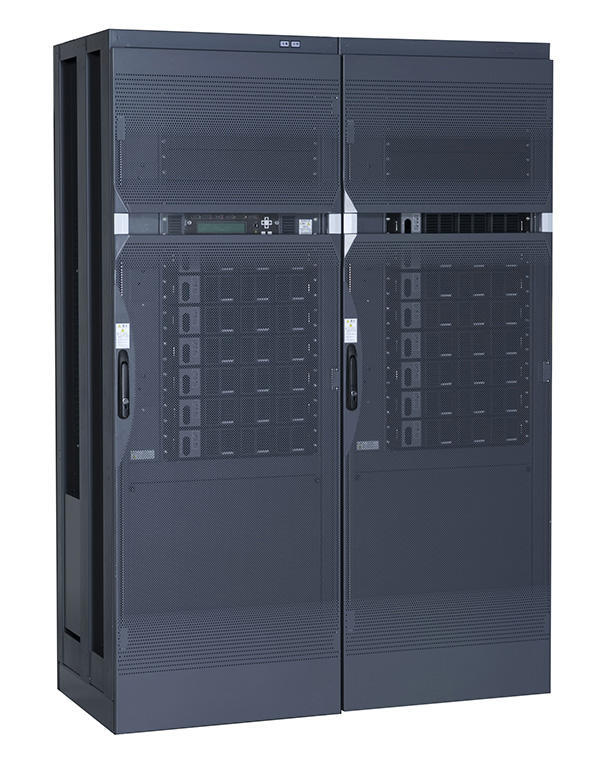

With 3-phase 200 VAC 50 Hz/60 Hz input, this power unit supplies -48 VDC 1200 A to 4800 A of direct current to peripherals during floating charge of seal lead storage batteries. Also, it has a monitoring display and the functionality to see warnings from the unit, gather measurement data, etc.
Specifications
| Input | 3-phase 200 VAC |
|---|---|
| Output | -48 VDC 1350 A to 4800 A |
Base station
Ultla-Compact
Overview

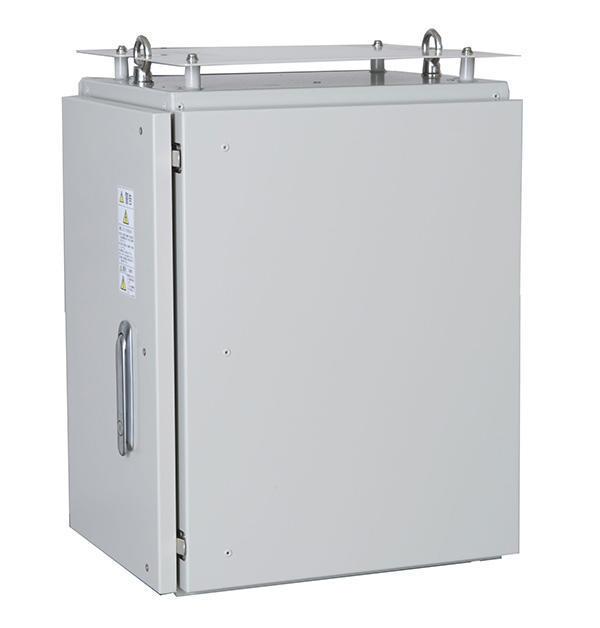

With single-phase 100 VAC 50 Hz or 60 Hz input, this outdoor power unit, capable of holding storage batteries, supplies -48 V 6 A to 15 A to peripherals during floating charge of seal lead storage batteries.
Also, it has a control circuit part and the functionality to see warnings from the unit.
Specifications
| Input | single-phase 100 VAC |
|---|---|
| Output | -48 VDC 6 A to 15 A |
Compact
Overview

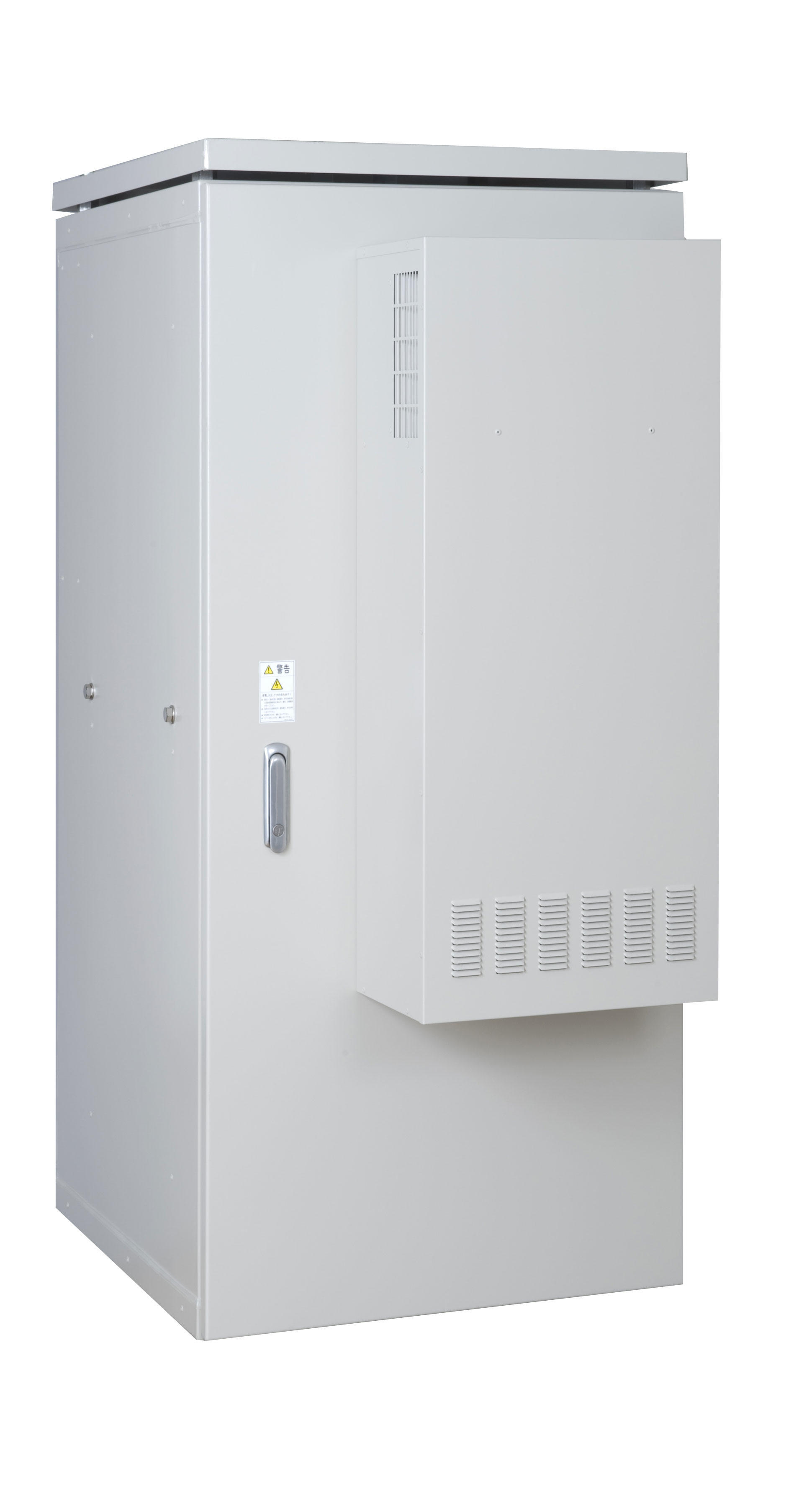

With single-phase 100 VAC 50 Hz or 60 Hz input, this outdoor power unit, capable of holding storage batteries, supplies -48 V 30 A to 60 A to peripherals during floating charge of seal lead storage batteries.
Also, it has a control circuit part and the functionality to see warnings from the unit, to gather measurement data, etc.
Specifications
| Input | single-phase 100 VAC |
|---|---|
| Output | -48 VDC 30A to 60A |
Midsize
Overview

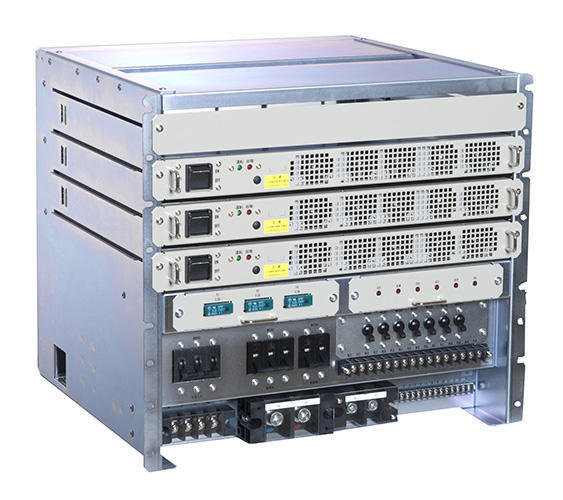

With 3-phase 200 VAC 50 Hz or 60 Hz input, this indoor power unit supplies 48 V 150 A to 600 A to peripherals during floating charge of seal lead storage batteries. Also, it has a control circuit part and the functionality to see warnings from the unit, to gather measurement data, etc.
Specifications
| Input | single-phase 200 VAC |
|---|---|
| Output | -48 VDC 150 A to 600 A |
Other
Rectifier
Overview

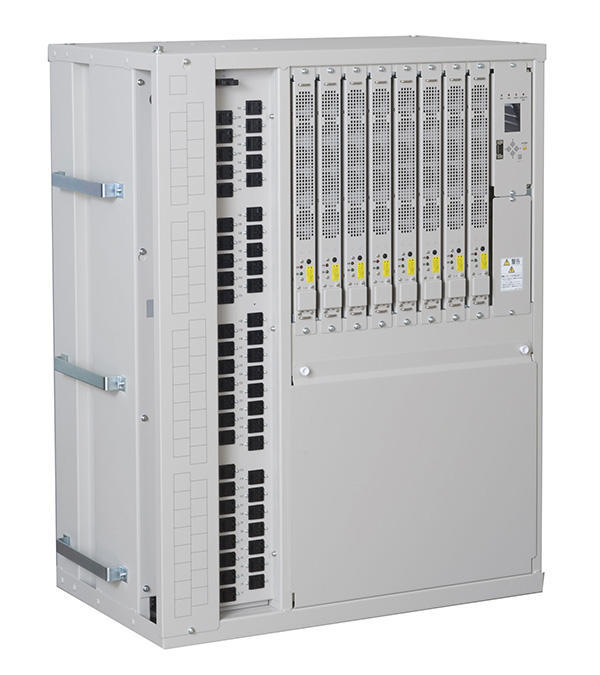

With 3-phase 200 VAC 50 Hz or 60 Hz input, this indoor power unit supplies 48 V 150 A to 600 A to peripherals during floating charge of seal lead storage batteries. Also, it has a control circuit part and the functionality to see warnings from the unit, to gather measurement data, etc.
Specifications
| Input | single-phase 200 VAC |
|---|---|
| Output | -48 VDC 150 A to 600 A |
Load Voltage Compensating Unit (Booster Converter)
Overview
This is a load voltage compensating unit, using the booster converter method, inserted serially between a DC power unit (with storage battery) and the load unit. When receiving power normally, it halts voltage-raising and supplies the input power from the DC power unit directly to the load device through bypass diodes. When a power outage causes storage battery discharge and lowers input voltage, the unit starts voltage-raising, responding to the drop in input voltage by raising the unit's voltage as high as 10 V; the raised voltage is added to the input voltage, and the output voltage is controlled within a specific range. Also, there are monitoring and control functions.
