VX3 series　－900-1200V High voltage Power MOSFETー

  • FB(TO-252)

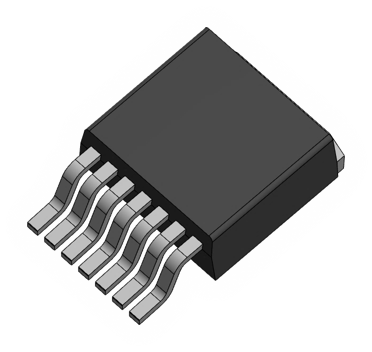

  • GF-7p(TO-263-7p)

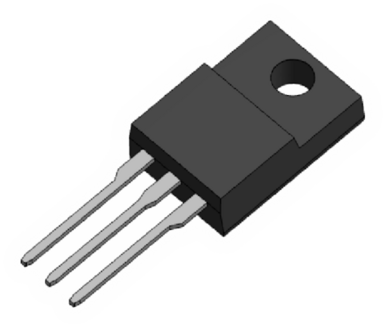

  • FTO-220AG(SC-91)

Part Name

VDS min[V]

ID max[A]

Ron [Ω]VGS=10V

Ciss * [pF]

Coss * [pF]

Crss * [pF]

Package

Status

typ

max

P1B90VX3K

900

1

9.5

14.0

201

26.7

4.5

TO-252

MP

P2B90VX3K

900

2

5.6

7.2

370

42

5.9

TO-252

MP

P1GF90VX3K

900

1

9.5

14.0

201

26.7

4.5

TO-263-7p

RS

P2GF90VX3K

900

2

5.6

7.2

370

42

5.9

TO-263-7p

RS

P3GF90VX3K

900

3

2.6

3.4

600

48

5.9

TO-263-7p

RS

P4GF90VX3K

900

4

1.9

2.5

980

78

10

TO-263-7p

Planning

P1GF120VX3KA

1200

1

19.6

24.5

240

22

2.7

TO-263-7p

RS

P2GF120VX3KA

1200

2

13.4

16.8

623

57

7

TO-263-7p

RS

P3GF120VX3KA

1200

3

10.1

12.6

876

80

10

TO-263-7p

RS

P4F90VX3

900

4

2.8

3.6

595

47

5.5

FTO-220AG

MP

P7F90VX3

900

7

1.2

1.7

1375

100

9.5

FTO-220AG

MP

* Measurement conditions：VDS=25V

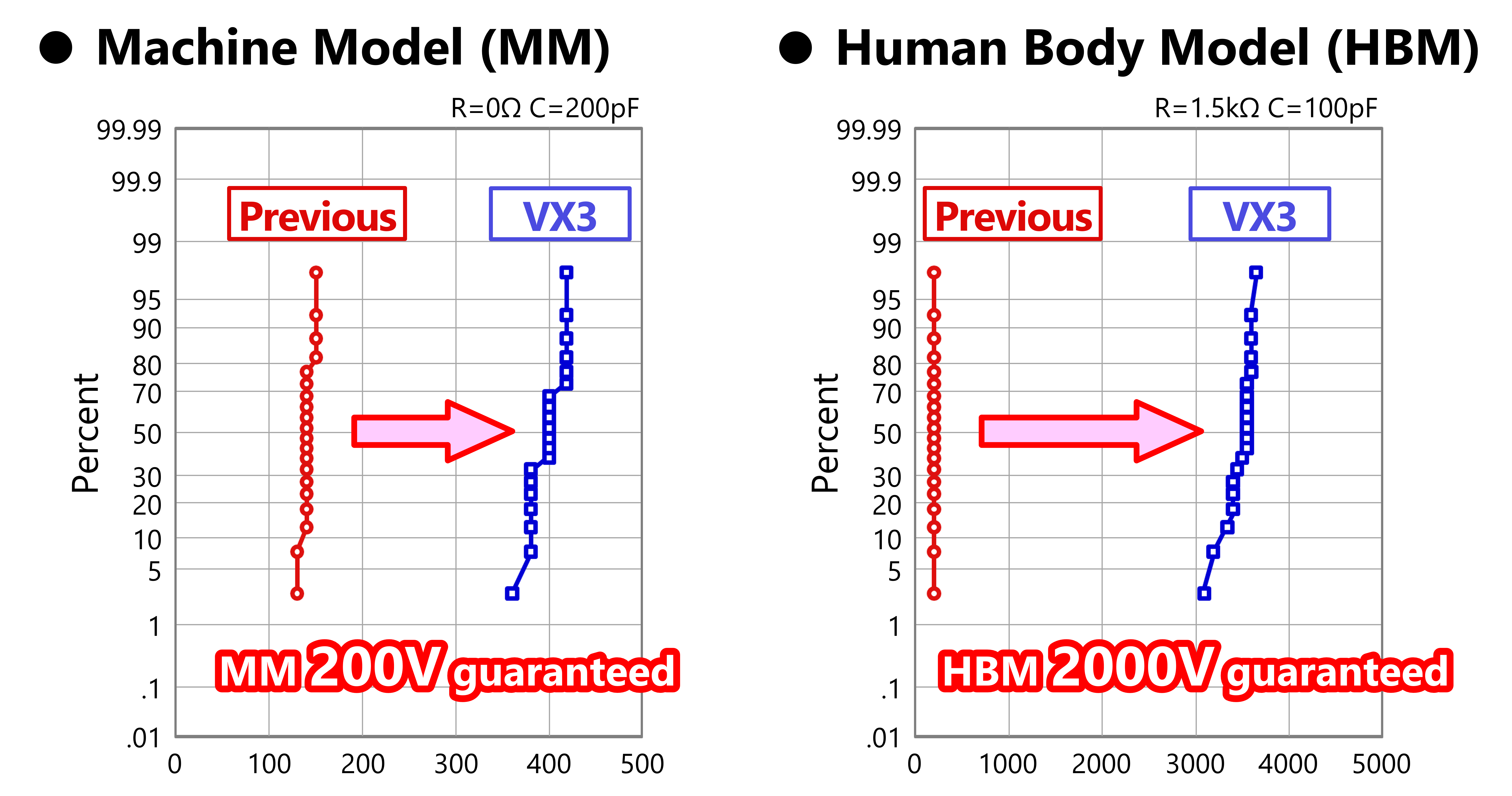

High ESD capacity

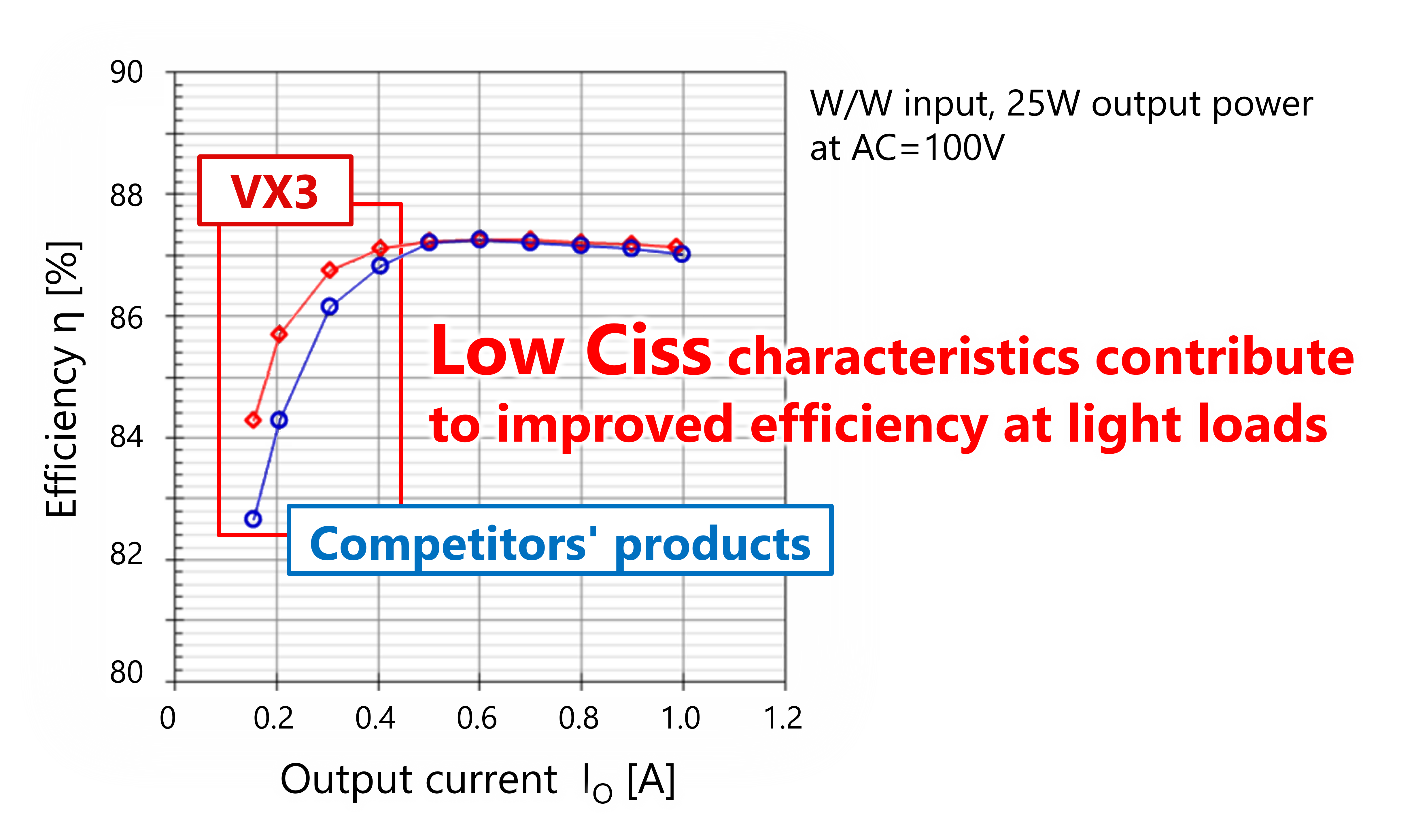

Improved efficiency at light loads

Circuit configuration example

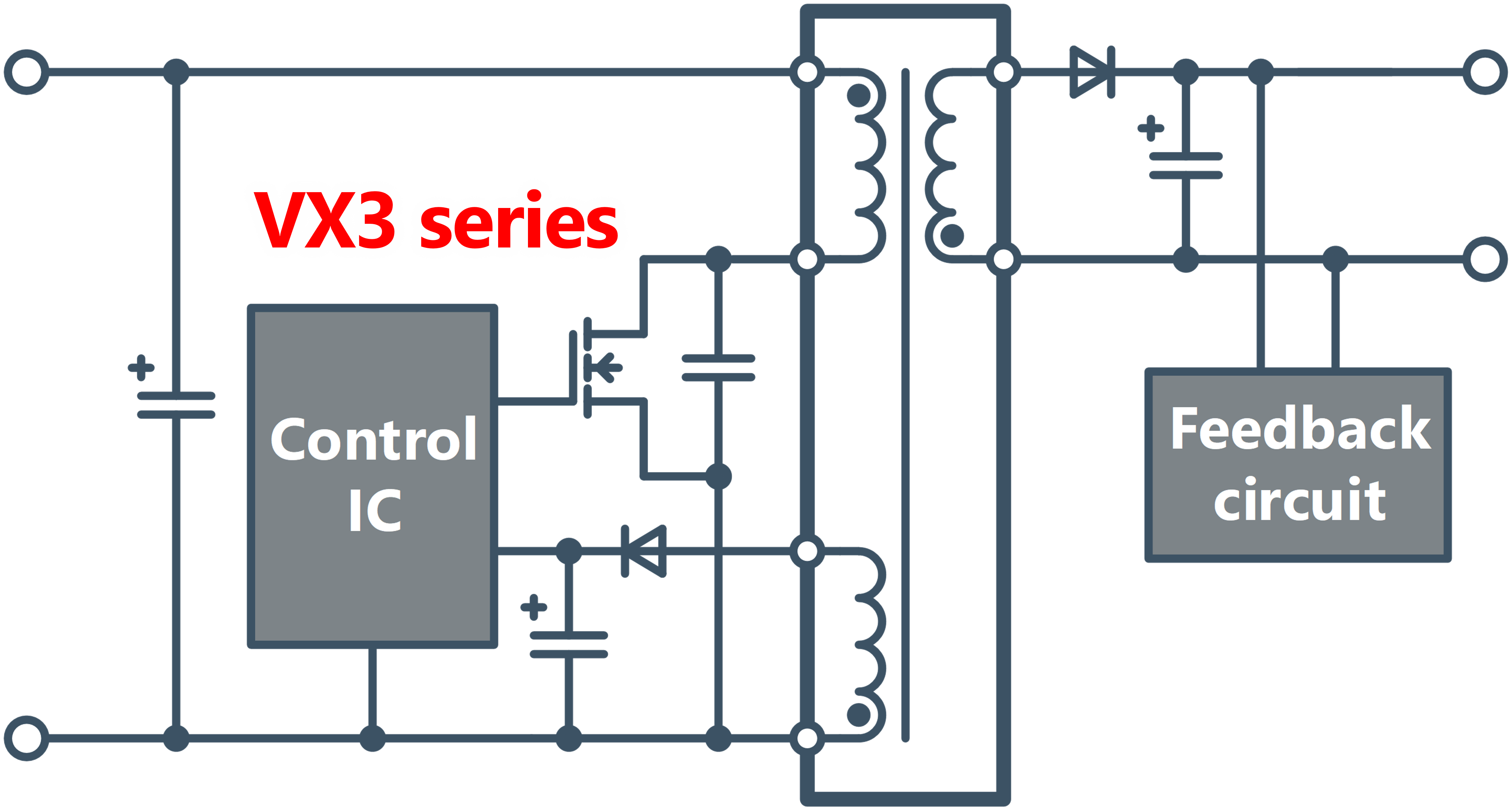

  • Flyback type switching power supply applications

  • Low voltage generation applications from high voltage battery

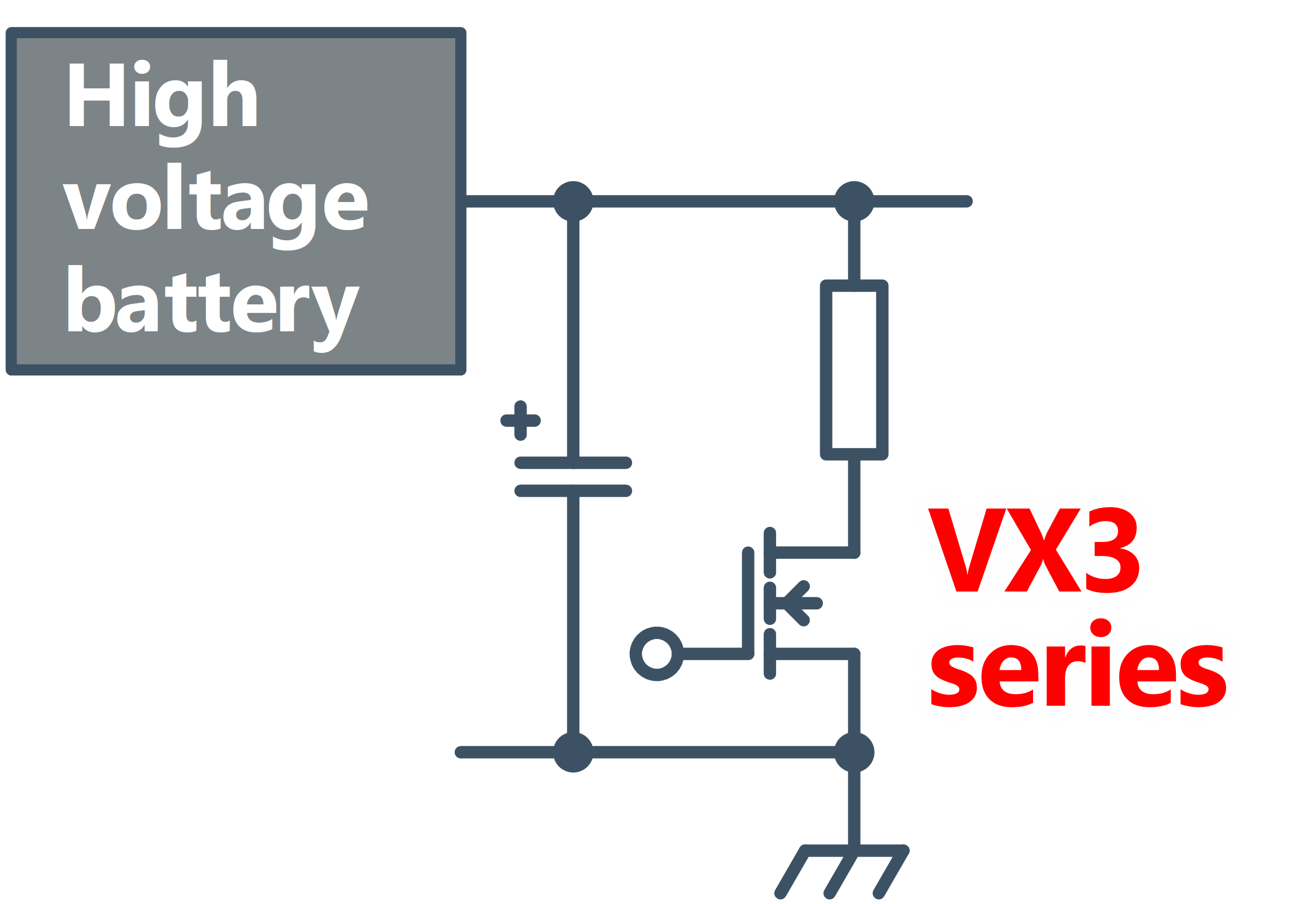

  • Electrolytic capacitor rapid discharge circuits
