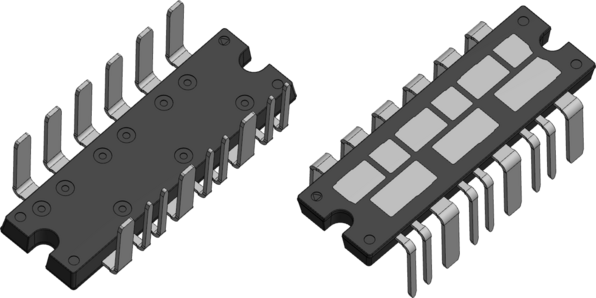

Motor drive power module MG031 series
Features
- Cu-Clip Technology

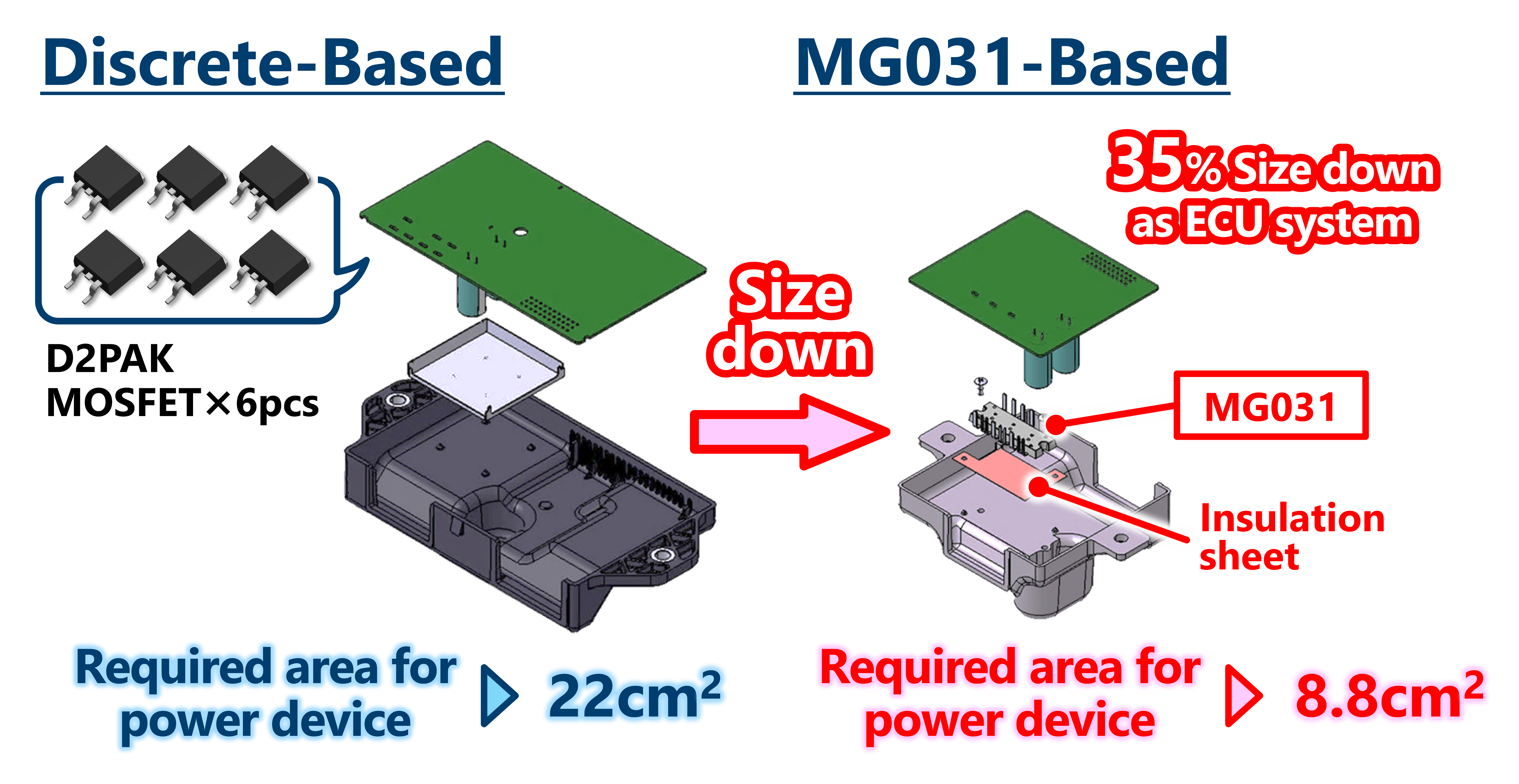

- Smaller package with higher Current
- Our own EETMOS® inside
EETMOS® Generation 4 inside Lineup
|
Part Name |

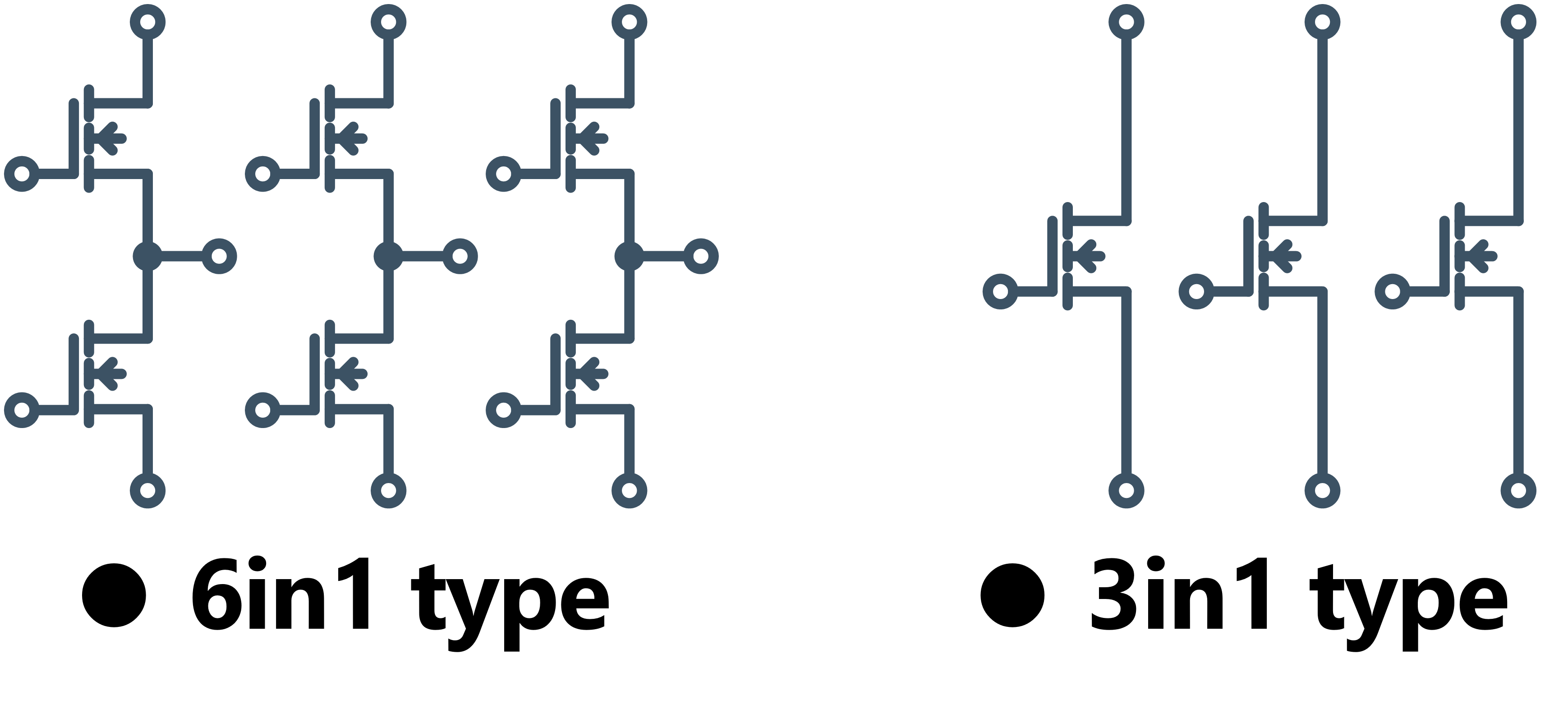

Circuit type |
VDSS[V] |
ID[A] |
Vth[V] |
RDS(on)[mΩ] |
|
MG031E120004A |
6in1 |
40 |
120 |
3.0 |
Max. 3.10 |
|
MG031G148004A |
6in1 |
40 |
148 |
3.0 |
Max. 2.20 |
|
MG031L080006A |
6in1 |
60 |
80 |
3.0 |
Max. 5.60 |
|
MG031N110006A |
6in1 |
60 |
110 |
3.0 |
Max. 3.80 |
|
Part Name |
Circuit type |
VDSS[V] |
ID[A] |
Vth[V] |
RDS(on)[mΩ] |
|
MG031MC148004A |
3in1 |
40 |
148 |
3.0 |
Max. 2.20 |
|
MG031MD110006A |
3in1 |
60 |
110 |
3.0 |
Max. 3.80 |
EETMOS® Generation 5 inside Lineup
|
Part Name |
Circuit type |
VDSS[V] |
ID[A] |
Vth[V] |
RDS(on)[mΩ] |
|
MG031AD200004A |
6in1 |
40 |
200 |
3.0 |
Max. 1.71 |
|
MG031AF150006A |
6in1 |
40 |
150 |
3.0 |
Max. 2.95 |
|
Part Name |
Circuit type |
VDSS[V] |
ID[A] |
Vth[V] |
RDS(on)[mΩ] |
|
MG031MF200004A |
3in1 |
40 |
200 |
3.0 |
Max. 1.71 |
|
MG031MH150006A |
3in1 |
60 |
150 |
3.0 |
Max. 2.95 |
