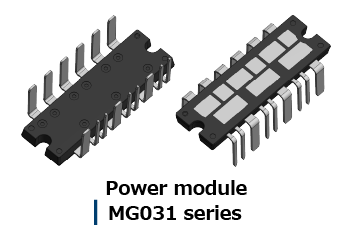

Shindengen Electric Manufacturing is expanding its lineup of MG031 series power modules for motor drive inverter circuits used in automotive and industrial equipment applications.

With the spread of electric mobility, semiconductor devices capable of handling high currents are in demand due to the use of high-voltage batteries. In addition, miniaturization and weight reduction of on-board devices is an important factor to reduce the weight of mobility.

To meet these needs, Shindengen Electric Manufacturing has expanded its lineup of MG031 series motor drive inverter circuits for automotive and industrial equipment applications.
The MG031 series is our power module series that has earned high praise for its compact and lightweight design.
The four newly added products feature our next-generation MOSFETs^※1 with very low Ron and low noise characteristics. Compared to conventional products^※2, on-resistance has been reduced by 22% and rated current has been increased by 35%. This makes them possible to use in equipment that require high currents.They also significantly reduce noise, contributing to improved safety.

・Suppression of on-resistance and improvement of rated current

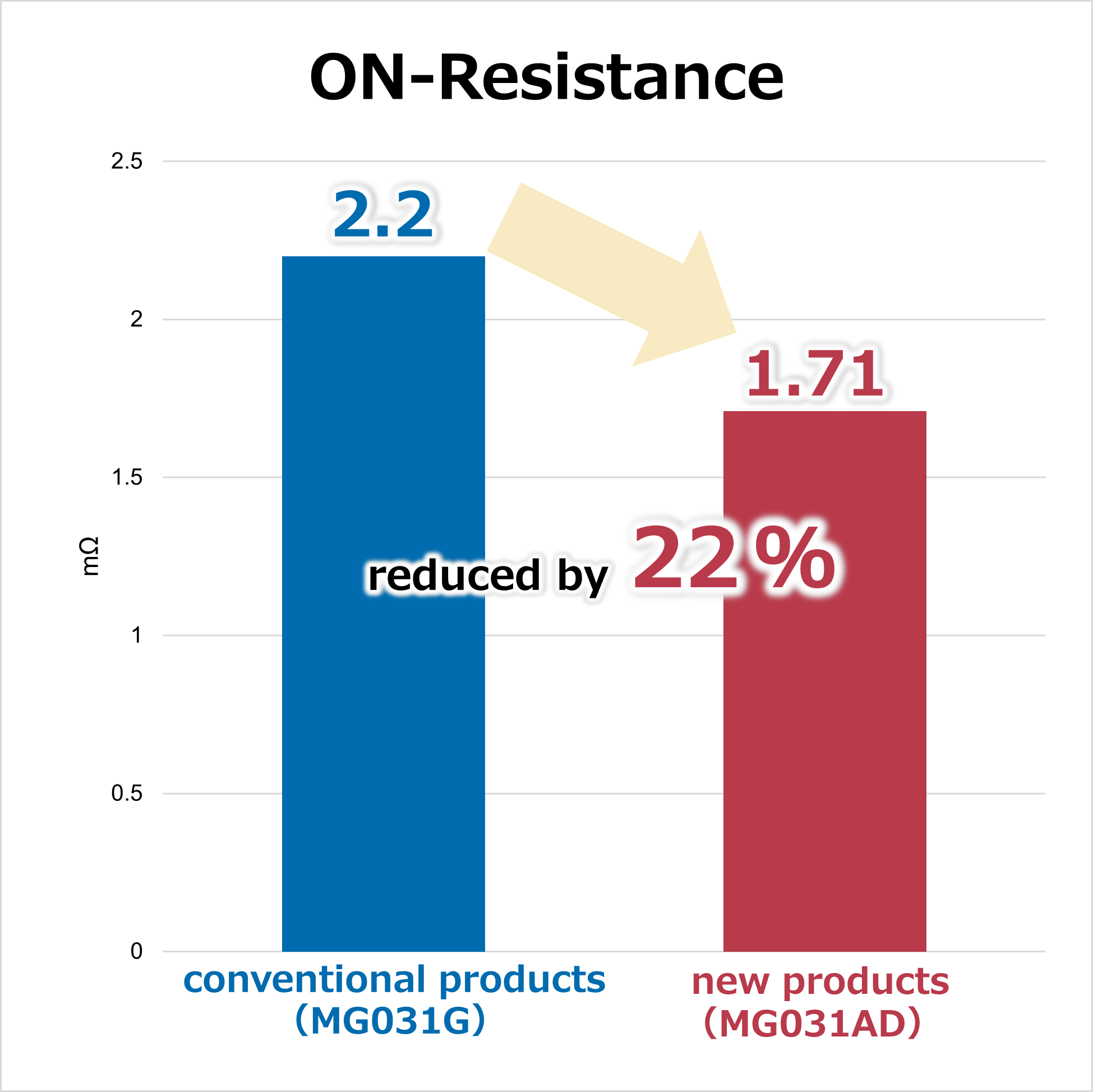

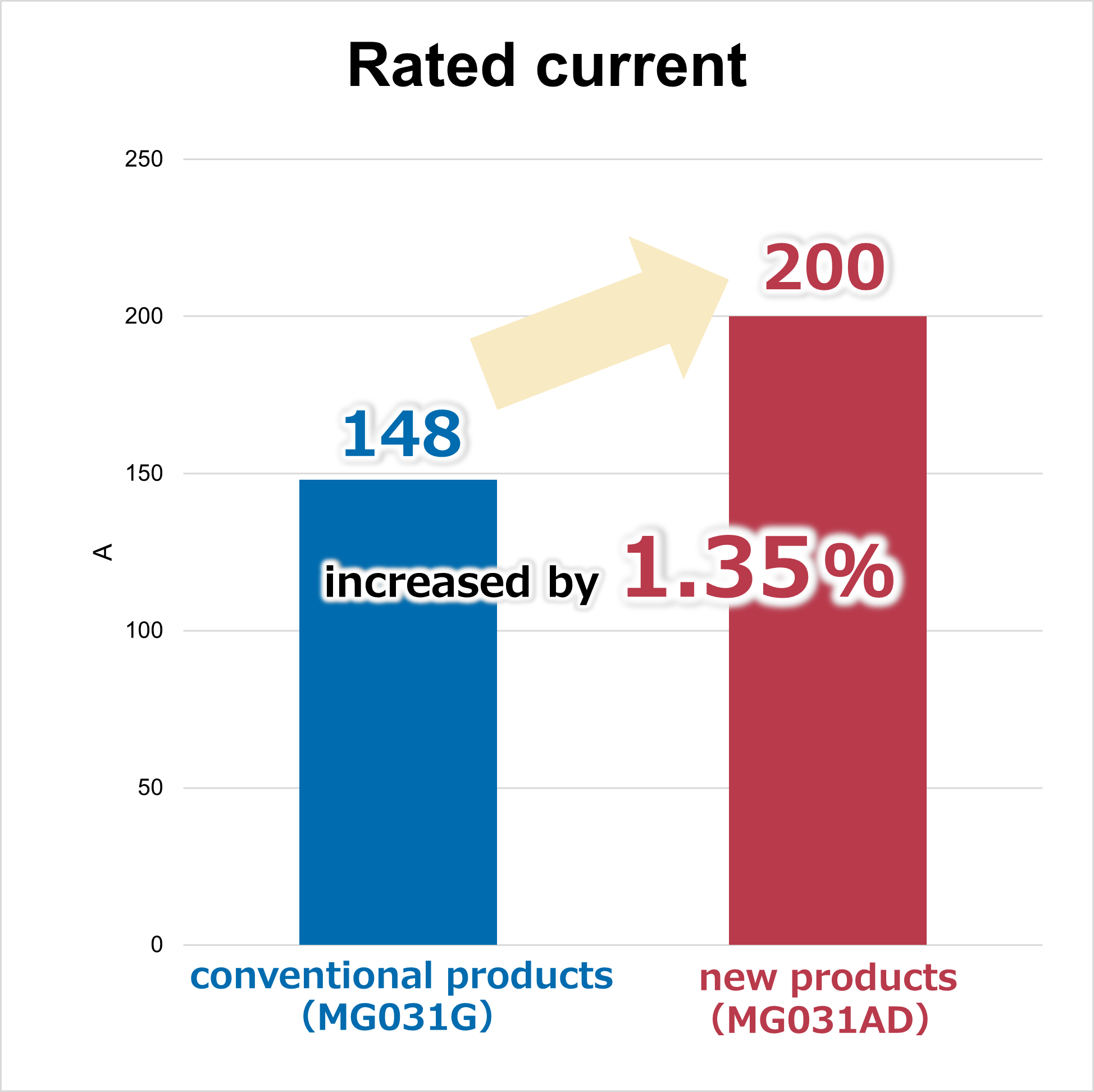

Compared to conventional products^※2, on-resistance has been reduced by 22% and rated current has been increased by 35%.
※2 Comparison of the "MG031G" and "MG031AD"

・Approximately 60% reduction size

Enhanced integration achieved substantial reduction in mounting area

・Greatly reduce noise

Our next-generation MOSFETs^※1, which offer low Ron and low noise characteristics, greatly reduce noise.
※1 5th Power MOSFET（EETMOS5 series）

・Adopted internal connection structure that uses connectors to support large currents.

Improved strength and reliability of the connection and lowered the internal wiring resistance compared to conventional aluminum wire bonded structures.

・Made more compact and capable of larger current through lead frame exposure

・Tch=175°C guarantee

・Ensures the reliability required for vehicle installations

■ Typical applications

・Small Capacity Motor (On-board Auxiliary System, etc.)
・Other Motor Drive

■ External Dimensions Diagram

6in1

3in1
