MF2003SV・MF2013SV V-Diode™
Pch MOSFET with built-in reverse current protection
Loss comparison

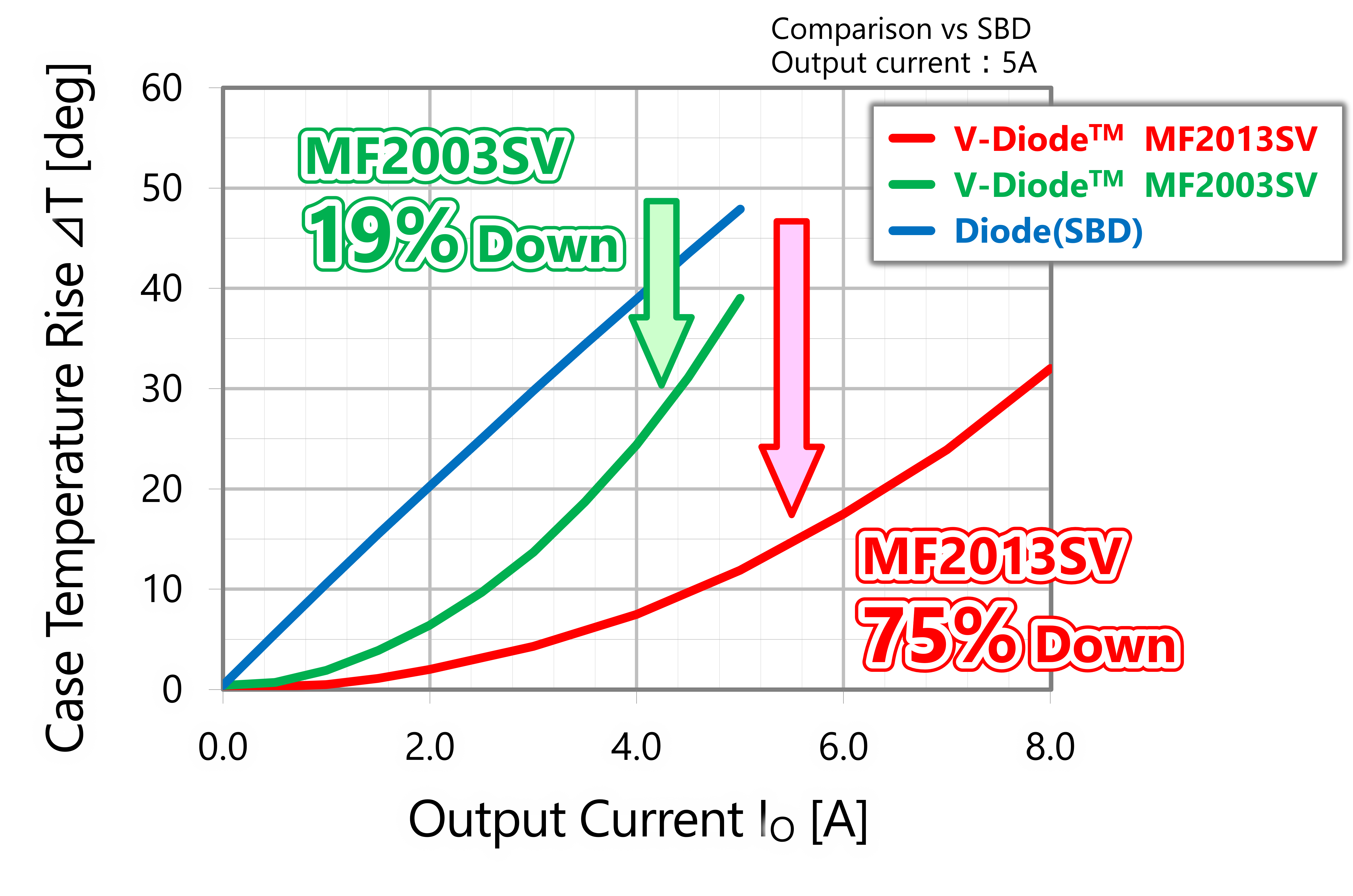

Temperature rise comparison

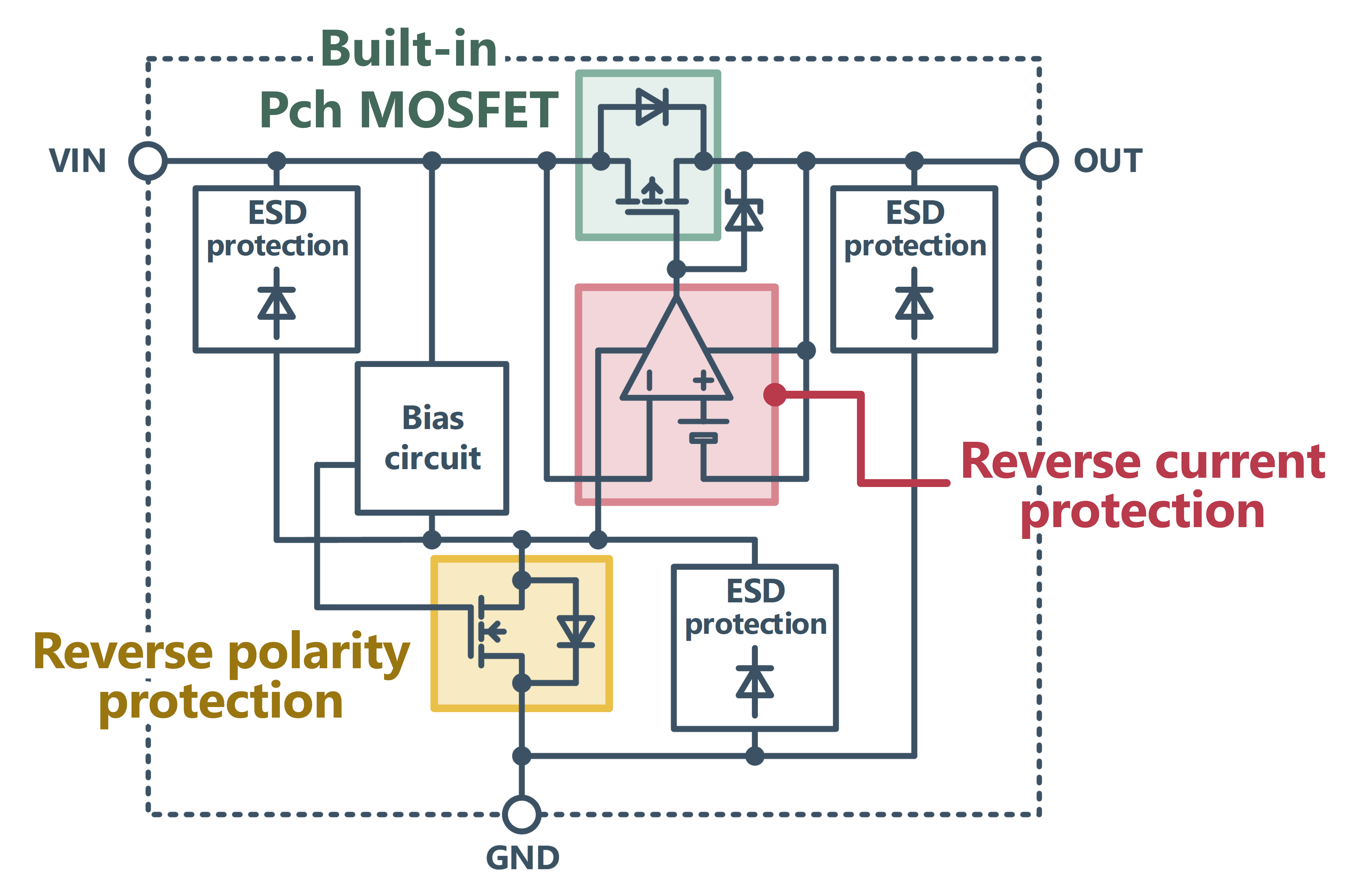

Block diagram
Specification
| MF2003SV | MF2013SV* | |
| Rated input voltage | ±42V | ±40V |
| Operating voltage | 2.5-40V | 3.2-40V |
|
Average current IO |
5A | 8A |
|
Current consumptionat no load Iq |
≦3μA |
≦12μA |
|
Built-in Pch MOSFET Ron |
53mΩ | 17mΩ |
|
Reverse current protection voltage (input voltage - output voltage) |
<25mV | <25mV |
|
Reverse polarity protection |
Built-in | Built-in |
|
AEC-Q100 |
◎ | Planned |
| Status | Mass production | Samples ◎ |
| Package | WSON8-4040 | |
*Under Development
