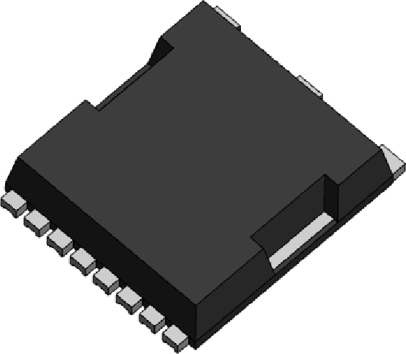

LG (TOLL) package

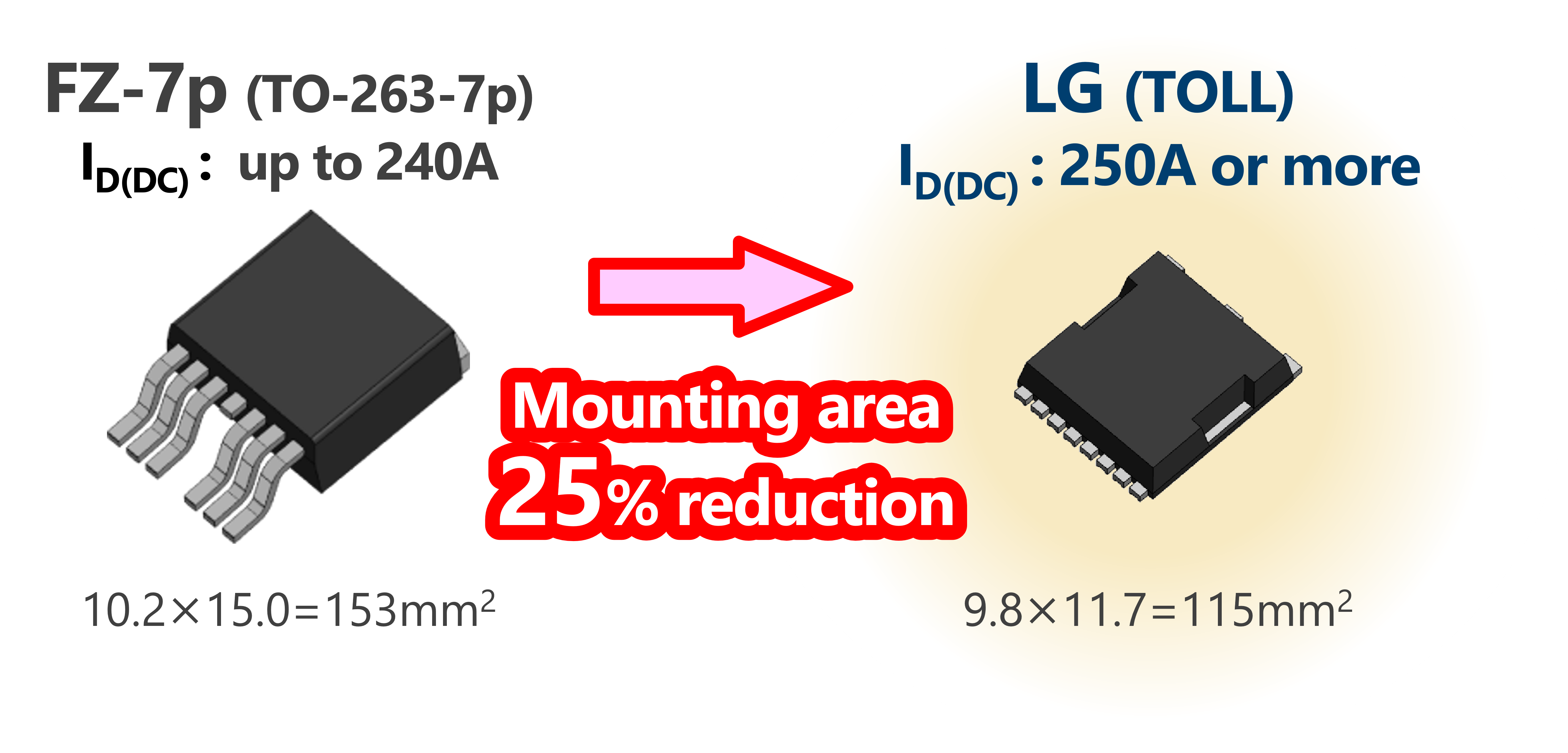

New High current pacakge
|
Part Name |
VDS min[V] |
ID max[A] |
VTH typ[V] |
Ron [mΩ]VGS=10V |
Ciss *1 [pF] |
Coss *1 [pF] |
Crss *1 [pF] |
Status |
|
|
typ |
max |
||||||||
|
PR55LG4RNK |
40 |
300 |
3.0 |
0.44 |
0.55 |
17369 |
5289 |
452 |
Planning |
|
PR73LG6RNK |
60 |
300 |
3.0 |
0.58 |
0.73 |
TBD |
TBD |
TBD |
Planning |
|
P105LG8RNK |
80 |
300 |
3.0 |
0.84 |
1.05 |
14560 *2 |
3920 *2 |
90 *2 |
Planning |
|
P158LG10RNK |
100 |
300 |
3.0 |
1.34 |
1.58 |
8482 *2 |
2697 *2 |
42 *2 |
RS |
|
P320LG15RNK |
150 |
144 |
3.0 |
2.5 |
3.2 |
TBD |
TBD |
TBD |
Planning |
|
P120LG20GNK |
200 |
120 |
3.0 |
7.2 |
9.0 |
6295 *3 |
476 *3 |
20 *3 |
ES |
*1：VDS=25V(typ) *2：VDS=50V *3：VDS=100V

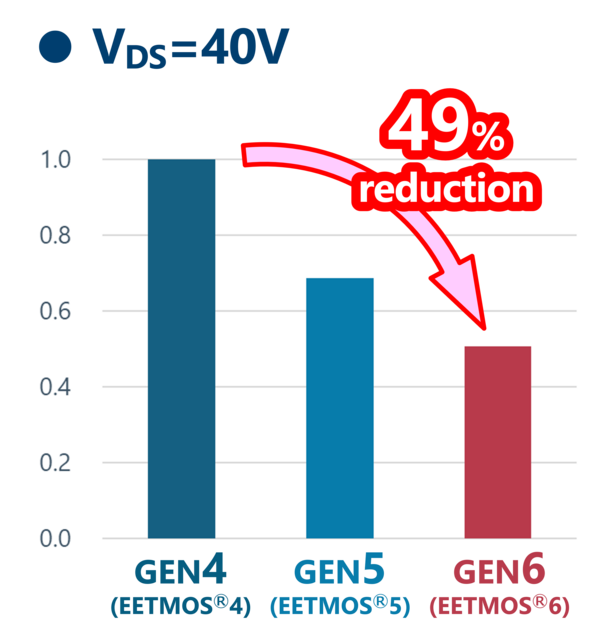

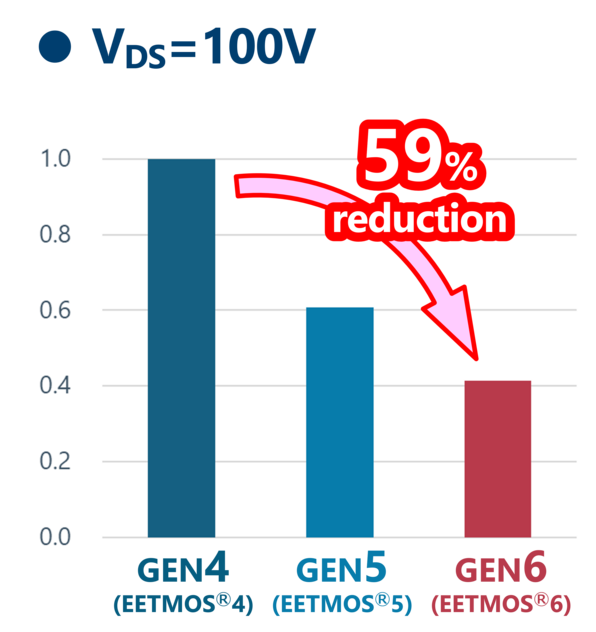

Comparison of Ron・A with
Compare with previous generation as 1
