- EETMOSTM5 series EETMOSTM6 series
EETMOSTM5 series EETMOSTM6 series
Compact, high-current power MOSFET
-
-
- LF(MO-235B similar)
-

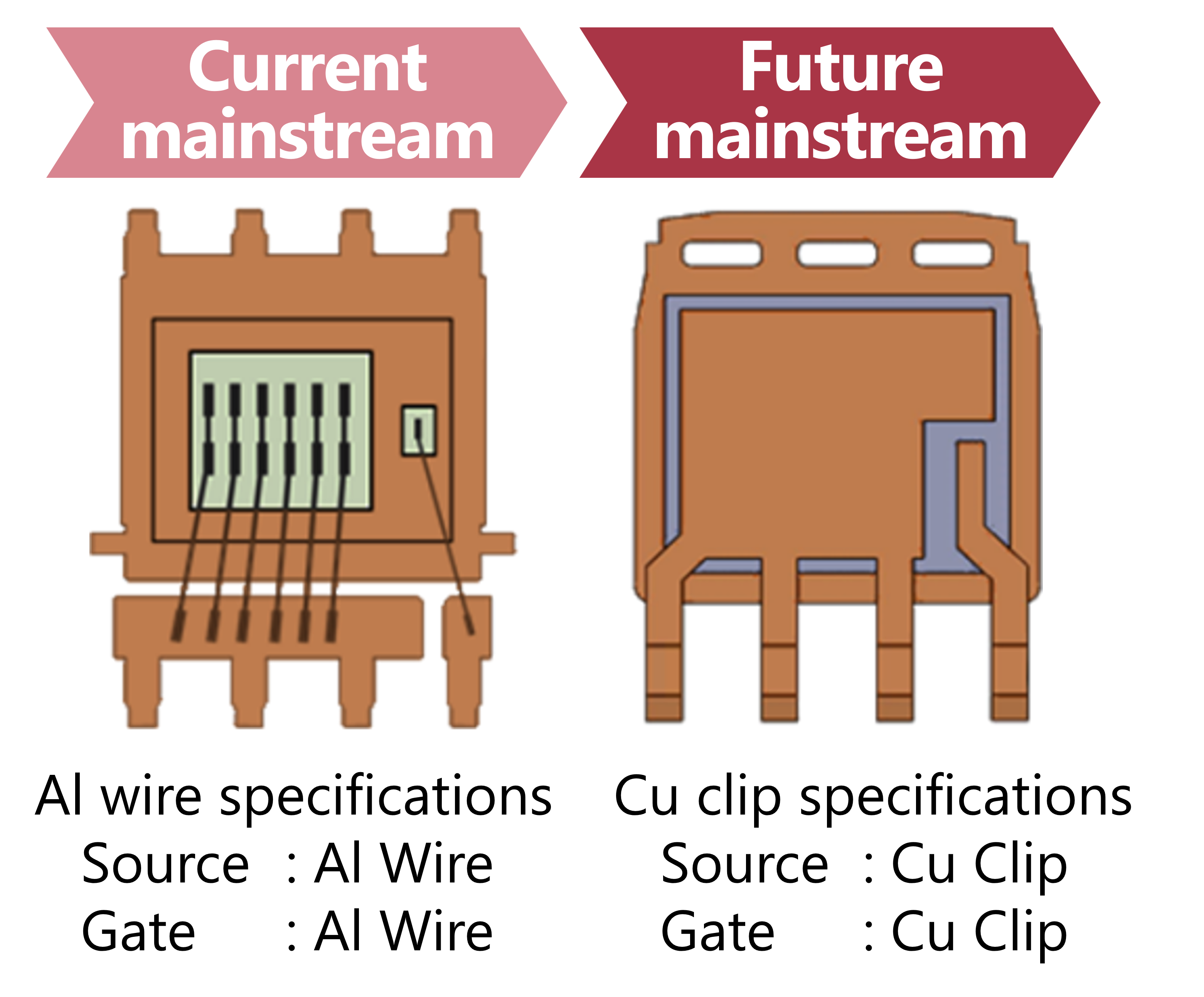

Cu clip structure
Substantially reduced resistance and improved heat dissipation realize miniaturization and reduced on-resistance.

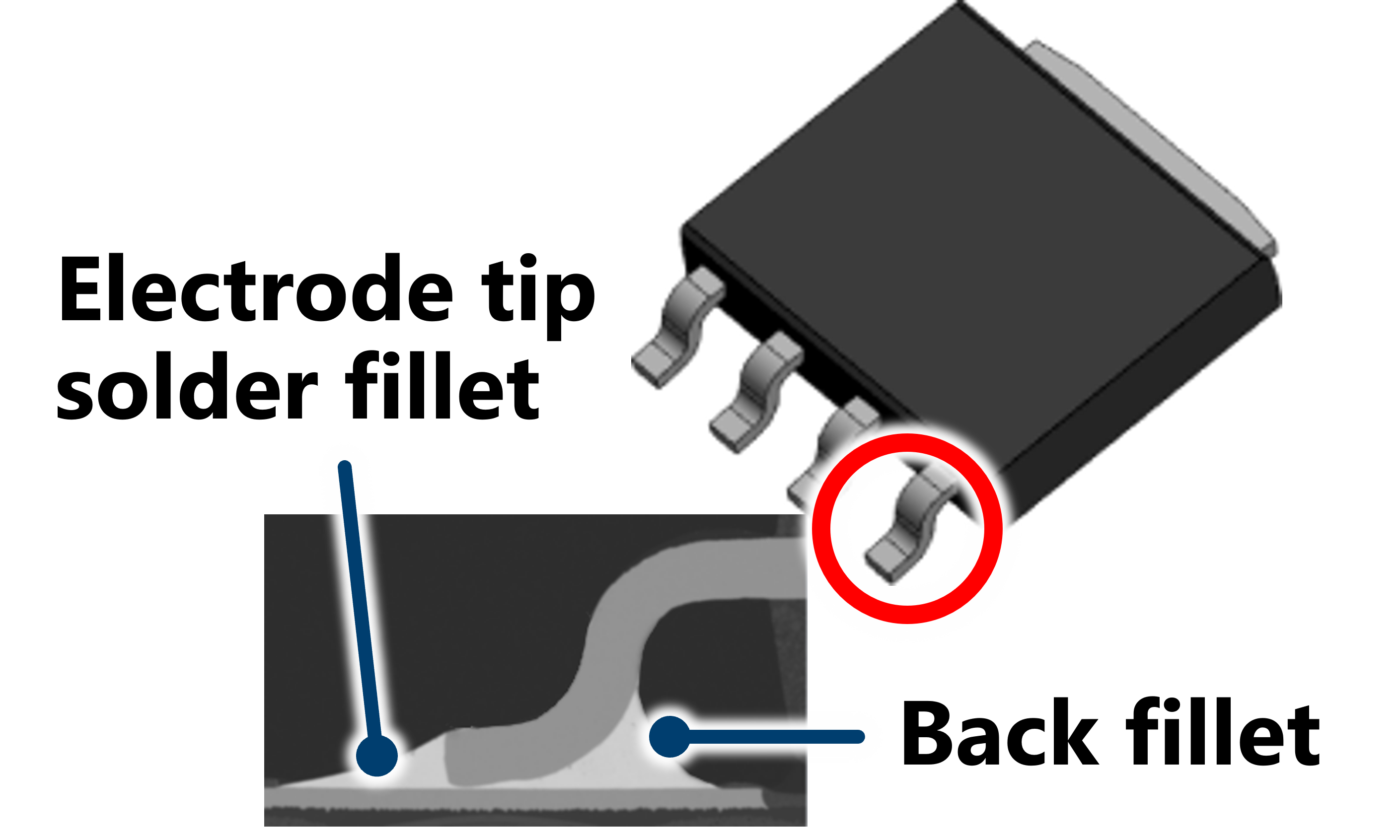

Gullwing shaped lead
Highly reliable mounting is realized by relaxing substrate stress and improving visibility of solder wetting.

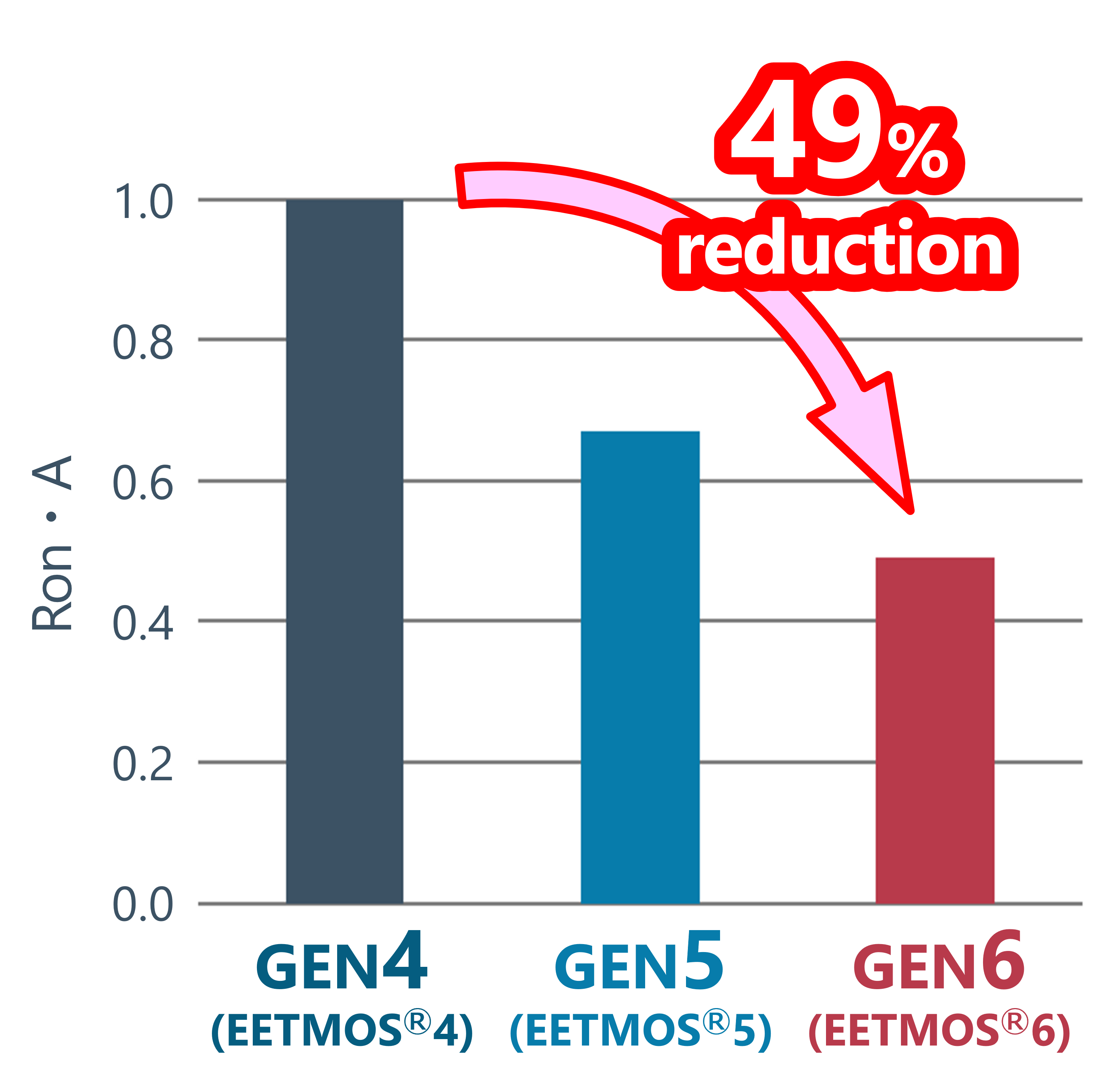

Comparison of Ron・A
Compare with previous generation as 1

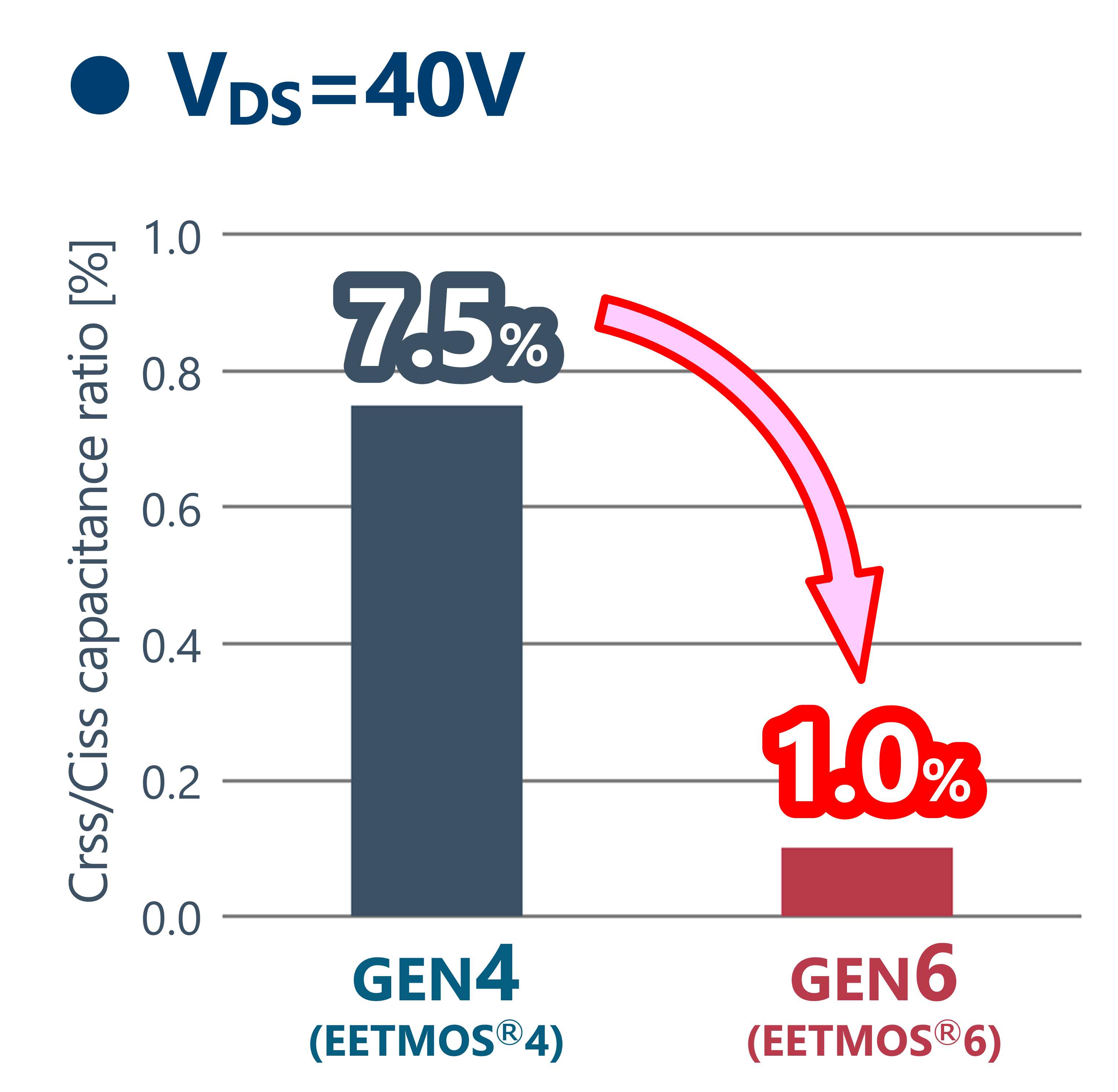

Comparison of capacitance ratio
|
Part Name |
VDS min[V] |
ID max[A] |
VTH typ[V] |
Ron [Ω]VGS=10V |
Ciss *1 [pF] |
Coss *1 [pF] |
Crss *1 [pF] |
Status |
|
|
typ |
max |
||||||||
|
PR76LF4RNK |
40 |
180 |
3.0 |
0.64 |
0.76 |
6768 |
2163 |
74 |
RS |
|
P129LF6RNK |
60 |
168 |
3.0 |
1.09 |
1.29 |
5133 |
1728 |
117 |
Planning |
|
P250LF8RNK |
80 |
103 |
3.0 |
2.1 |
2.5 |
6240*2 |
1680*2 |
35*2 |
Planning |
|
P430LF10RNK |
100 |
82 |
3.0 |
3.4 |
4.3 |
3248*2 |
793*2 |
15*2 |
Planning |
|
P850LF15RNK |
150 |
58 |
3.0 |
6.8 |
8.5 |
TBD |
TBD |
TBD |
Planning |
|
P32LF20GNK |
200 |
32 |
3.0 |
23 |
29 |
2152*3 |
147*3 |
6*3 |
Planning |
*1：VDS=25V(typ) *2：VDS=50V *3：VDS=100V
