DL20B series
New 2000W

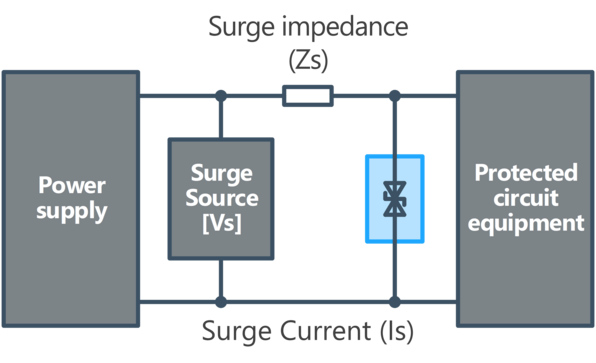

Compact Bidirectional TVS Diode
- PRSM=2000W TVS diode (applied current waveform 10/1000us)

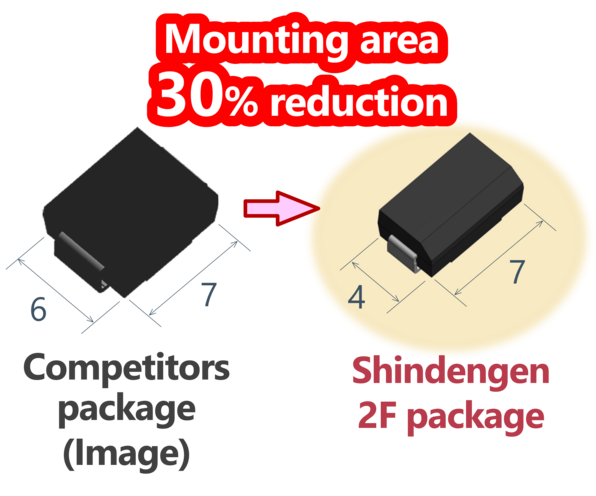

- Package size 7x4mm, 30% downsizing against competitors
- Copper clip connection and gull wing terminal structure
- AEC-Q101 Qualified
|
Part Name |
Absolute Maximum Ratings |
Electrical Characteristics |
|||||
|
PRSM[W] |
Tstg[°C] |
Tj[°C] |
VR(DC)[V] |
VBR [V] |
IR max[uA] |
||
|
min |
max |
||||||
|
DL20B-27F2 |
2000 |
-55-175 |
175 |
23 |
25.0 |
29.0 |
5 |
|
DL20B-30F2 |
2000 |
-55-175 |
175 |
24 |
28.0 |
32.0 |
5 |
|
DL20B-33F2 |
2000 |
-55-175 |
175 |
25 |
31.0 |
35.0 |
5 |
|
DL20B-36F2 |
2000 |
-55-175 |
175 |
27 |
34.0 |
38.0 |
5 |
