SiC Schottky Barrier Diodes (SiC-SBD)

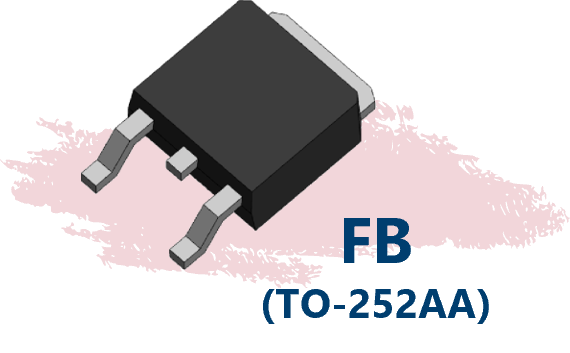

Surface Mount Package (FB)

SiC-SBD,Surface mount package(FB)

■ Features
　・New SiC-SBD (Low VF）
　・Automotive applications also available (planned)
■ Applications
　・Secondary-side rectification
　・Reverse current prevention
　・Power factor correction (PFC/Continuous mode)
　　...etc.

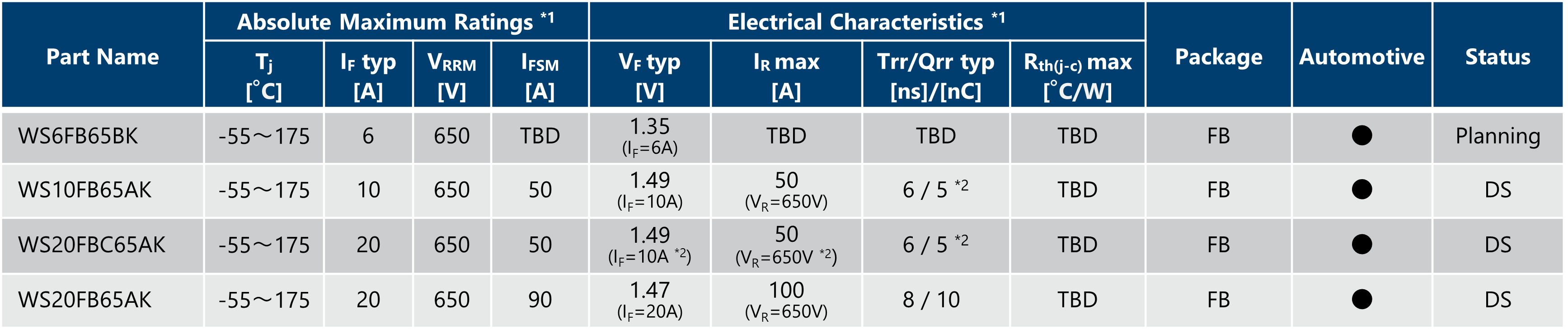

SiC-SBD Surface mount package (FB) Specifications
*1：TC=25°C　*2：Per diode

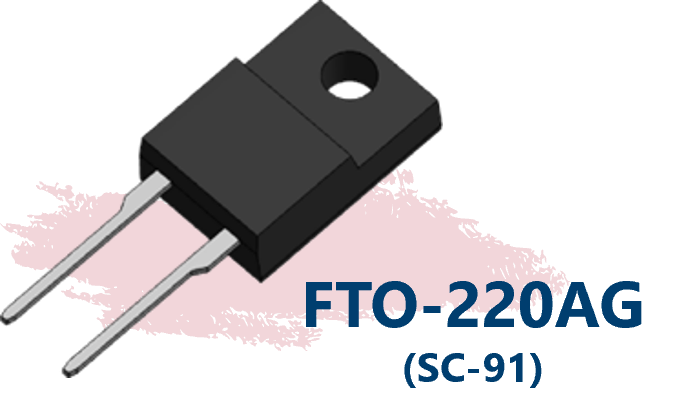

Through hole device (FTO-220AG)

SiC-SBD,Through hole device (FTO-220AG)

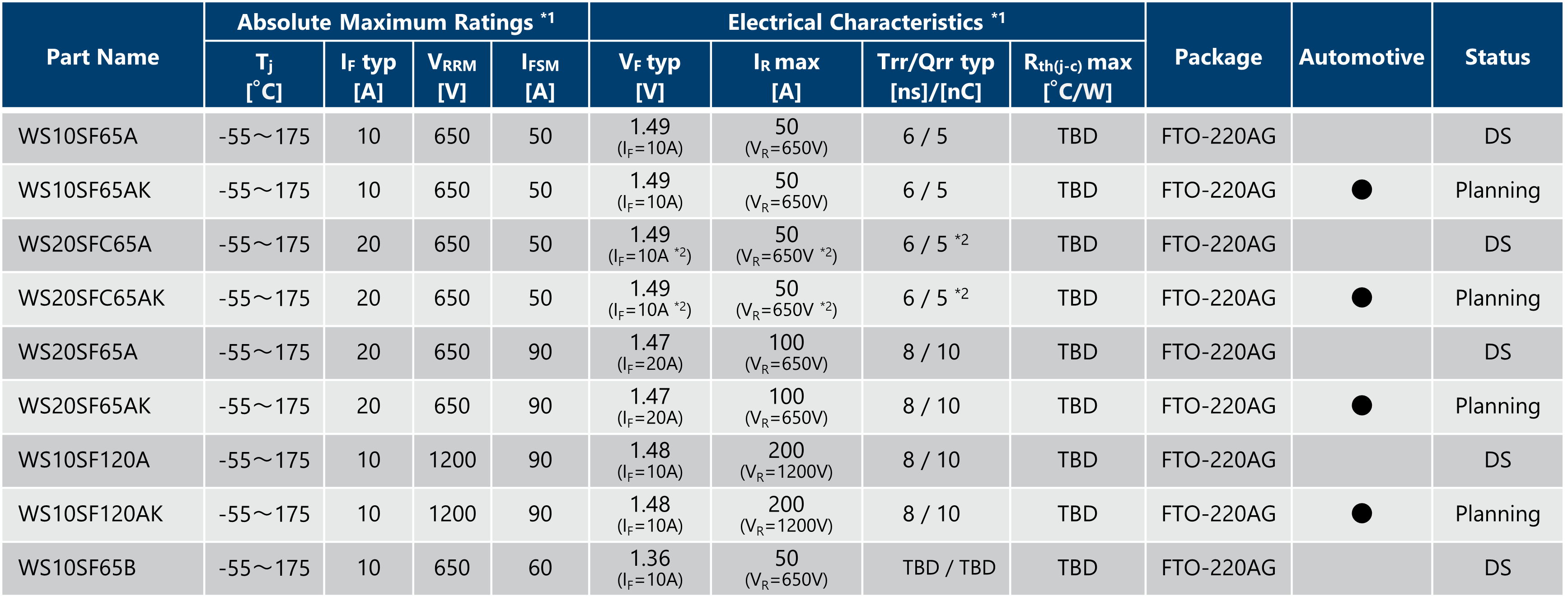

SiC-SBD Through hole device (FTO-220AG) Specifications
*1：TC=25°C　*2：Per diode

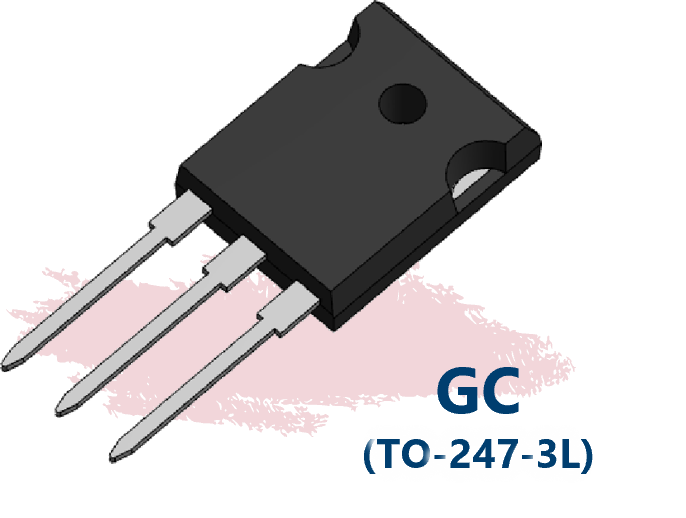

Through hole device (GC)

SiC-SBD Through hole device (CG)

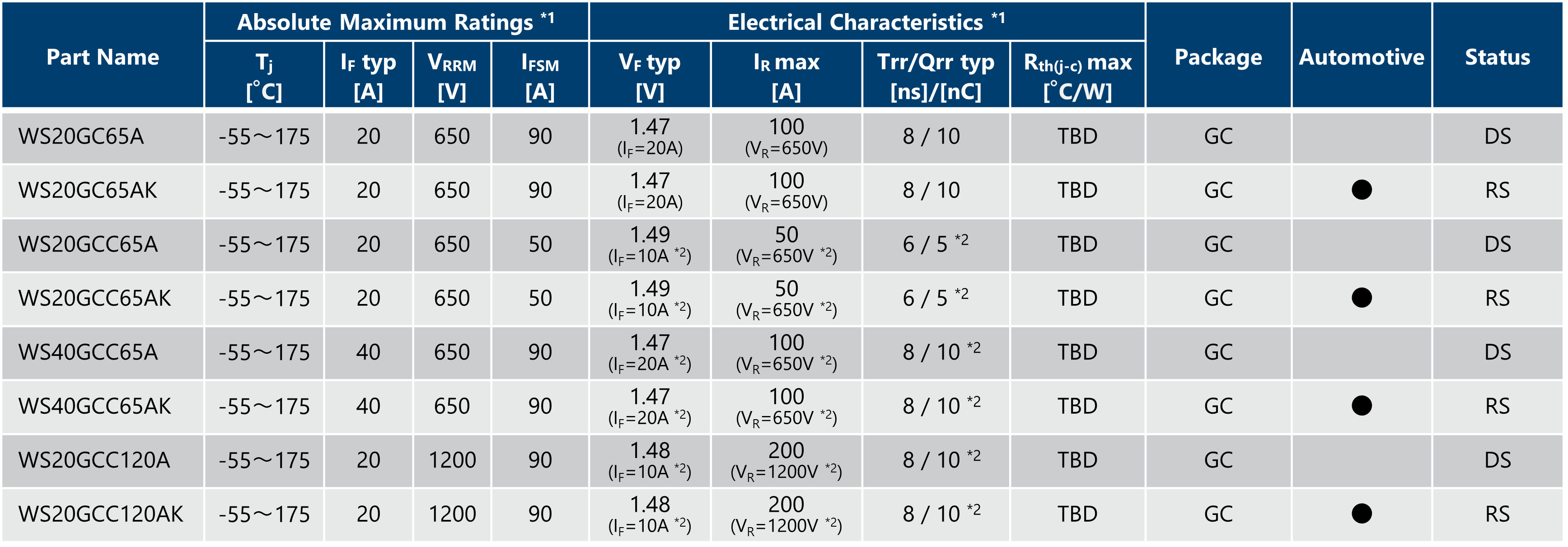

SiC-SBD,Through hole device(GC) Specifications
*1：TC=25°C　*2：Per diode

1200V SiC-SBD
(Next-generation Development Product)

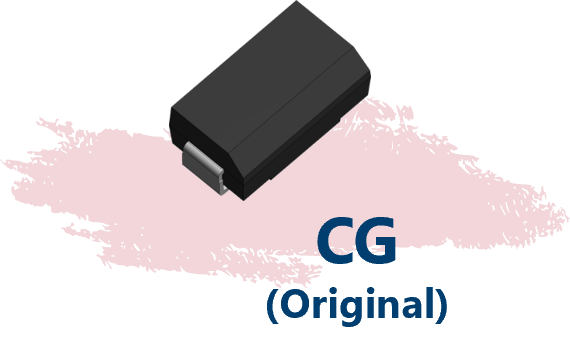

SiC-SBD Surface Mount Package (CG)

■ Features
　・2F package size with 5.6mm terminal spacing
　・Ultra-low trr (Qrr)

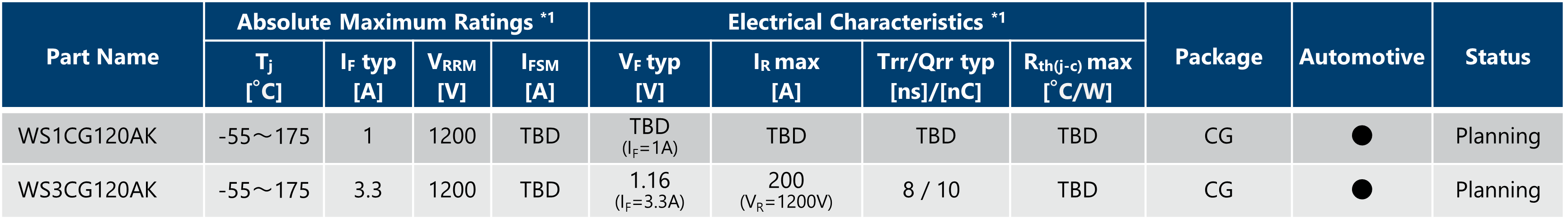

SiC-SBD Surface Mount Package (CG) Specifications
*1：TC=25°C

650V Compact Surface Mount SiC-SBD
(Next-generation Development Product)

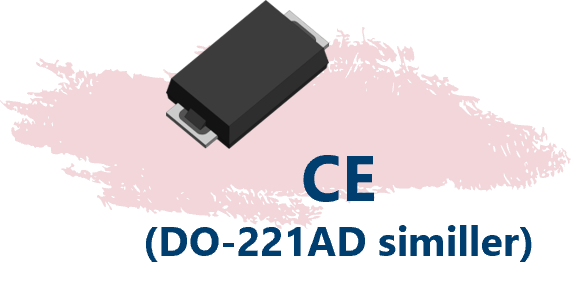

SiC-SBD Surface Mount Package (CE)

■ Features
　・Small surface mount package
       differentiates us from competitors
　・Ultra-low trr (Qrr)

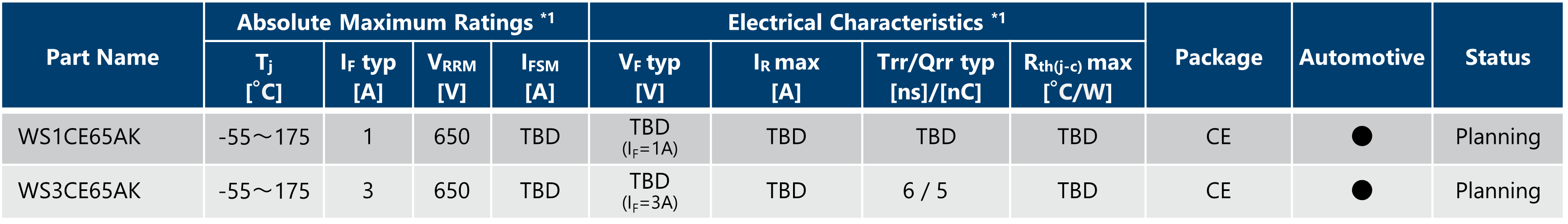

SiC-SBD Surface Mount Package (CE) Specifications
*1：TC=25°C
