- High withstand voltage MOSFETs
High withstand voltage MOSFETs
▼VX3series
Achieves a high degree of safety with a HBM 2kV high ESD tolerance
▼HP2series
Compatible with a wide range of withstand voltages
This series reduces Ron by 20% in order to achieve high efficiency

■900V high withstand voltage MOSFETs
■High ESD tolerance (HBM 2kV or higher)
■Industry leading Ron/Qg ※Planar structure
■This series reduces ON resistance by 20% compared to Shindengen conventional products (VX2 Series) in order to achieve high efficiency
■All items guaranteed for avalanche and di/dt
■Can also be customized, such as by improving the speed of the body diode
■High ESD tolerance (HBM 2kV or higher)
■Industry leading Ron/Qg ※Planar structure
■This series reduces ON resistance by 20% compared to Shindengen conventional products (VX2 Series) in order to achieve high efficiency
■All items guaranteed for avalanche and di/dt
■Can also be customized, such as by improving the speed of the body diode

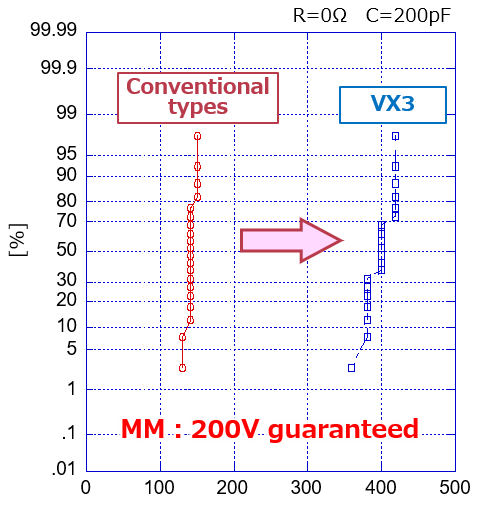

High ESD tolerance MM 200V guaranteed
Machine Model : MM

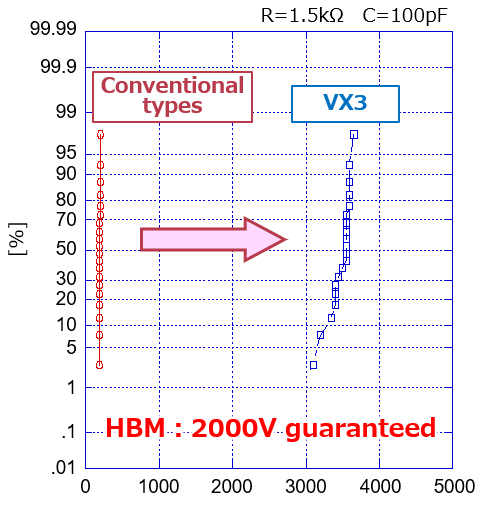

High ESD tolerance HBM 2kV guaranteed
Human Body Model : HBM

Efficiency improvement under light load
For worldwide input, 25W output power supply at AC=100V

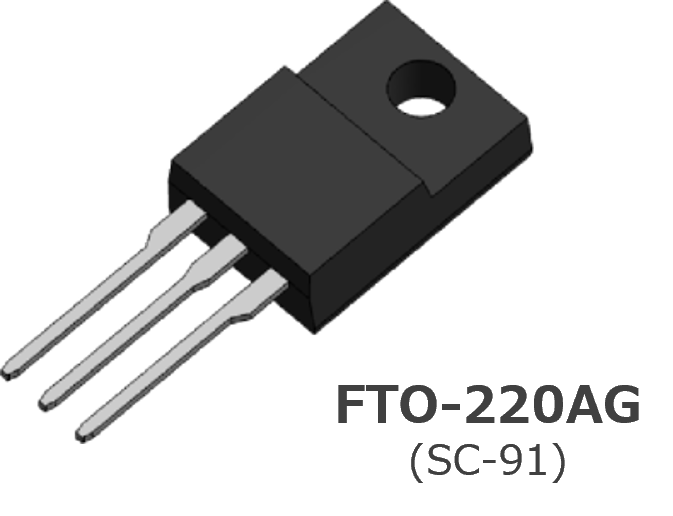

Product Specifications
Part Name | VDS min. [V] | ID max. [A] | Ron [Ω] | Package (HOUSE NAME) |
Series | |
---|---|---|---|---|---|---|
typ. | max. | |||||
P1B90VX3 | 900 | 1.0 | 9.5 | 14.0 | FB | RS |
P2B90VX3 | 900 | 2.0 | 5.6 | 7.3 | FB | RS |
P4F90VX3 | 900 | 4.0 | 2.8 | 3.6 | FTO-220AG | MP |
P7F90VX3 | 900 | 7.0 | 1.2 | 1.7 | FTO-220AG | MP |

■250V to 600V withstand voltage MOSFETs
■This series reduces Ron by 20% compared to Shindengen conventional products (VX3 Series) in order to achieve high efficiency
■Its high breakdown resistance (avalanche, di/dt) to reduce Ron×Qg by 20% compared to Shindengen conventional products
■It is also possible to improve the speed of the body diode. (trr≒80ns typ.)
■This series reduces Ron by 20% compared to Shindengen conventional products (VX3 Series) in order to achieve high efficiency
■Its high breakdown resistance (avalanche, di/dt) to reduce Ron×Qg by 20% compared to Shindengen conventional products
■It is also possible to improve the speed of the body diode. (trr≒80ns typ.)
Contribute to greater reduction of power consumption
Ron resistance by 20% compared to Shindengen conventional products. (VX3 Series)

Achieves lower noise
Reduce Ron×Qg by 20% compared to Shindengen conventional products.

Body diodes can be significantly speed up
Body diodes can be significantly speed up through lifetime control.

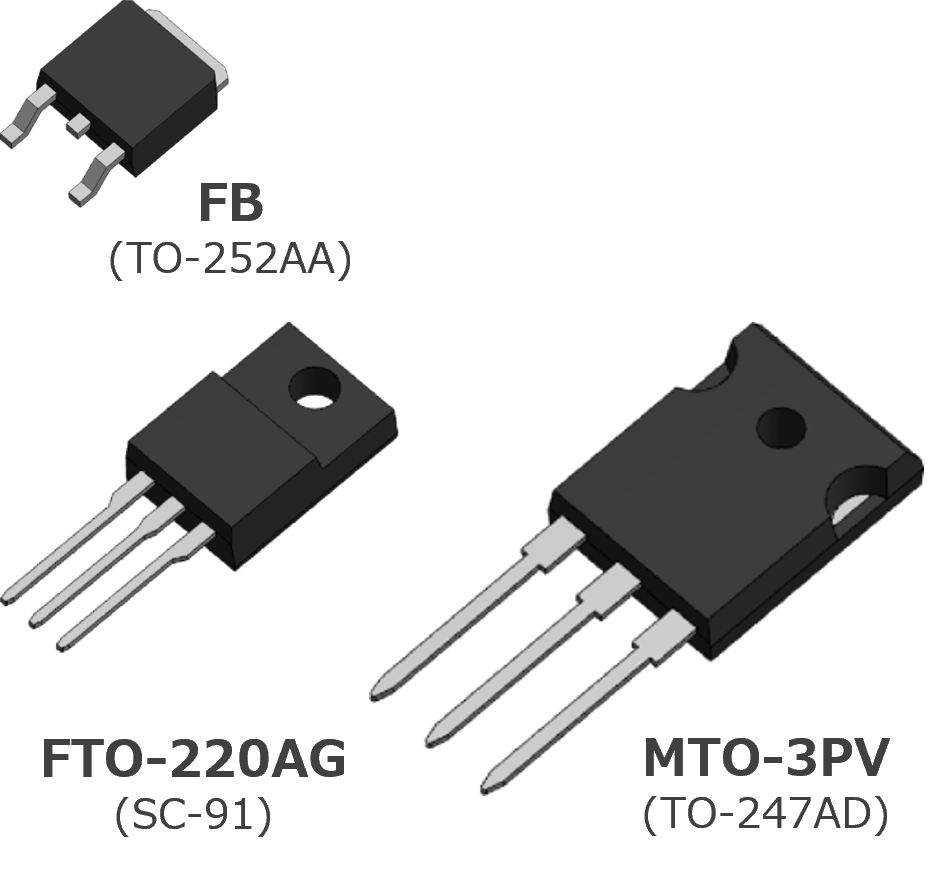

Product Specifications

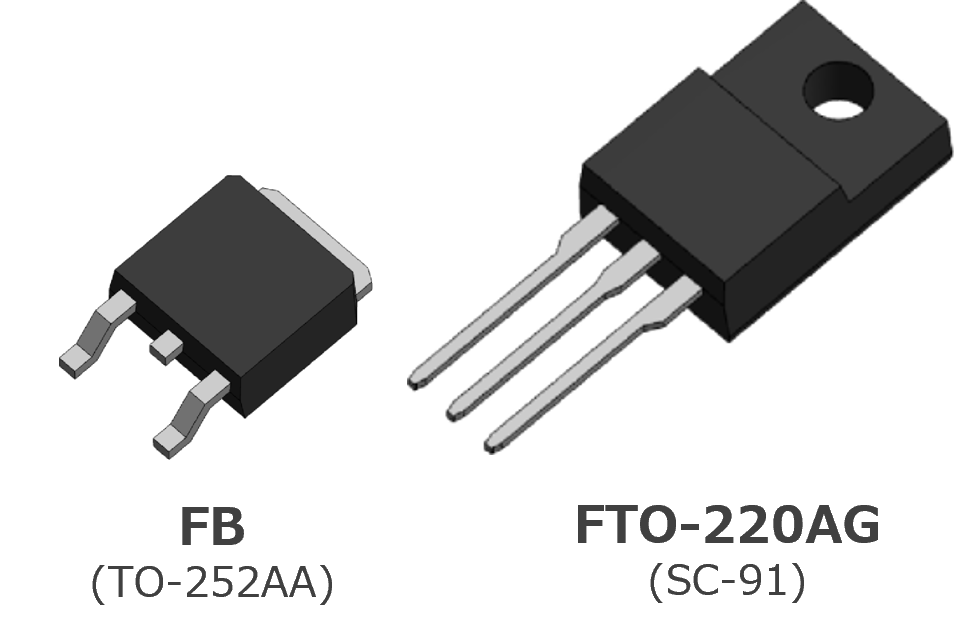

FB(TO-252)
Part Name | VDS min. [V] | ID max. [A] | Ron [Ω] | Package (HOUSE NAME) |
|
---|---|---|---|---|---|
typ. | max. | P3B28HP2 | 280 | 3.0 | 1.70 | 2.00 | FB |
P6B28HP2 | 280 | 6.0 | 0.66 | 0.85 | FB |
P10B28HP2 | 280 | 10.0 | 0.30 | 0.40 | FB |
P8B30HP2 | 300 | 8.0 | 0.42 | 0.50 | FB |
P9B40HP2 | 400 | 9.0 | 0.65 | 0.80 | FB |
P1B52HP2 | 525 | 1.0 | 6.00 | 7.20 | FB |
P5B52HP2 | 525 | 5.0 | 1.40 | 1.70 | FB |
P6B52HP2 | 525 | 6.0 | 1.10 | 1.35 | FB |
P0R5B60HP2 | 600 | 0.5 | 8.30 | 10.00 | FB |
FB(TO-252) High speed type
Part Name | VDS min. [V] | ID max. [A] | Ron [Ω] | Package (HOUSE NAME) |
|
---|---|---|---|---|---|
typ. | max. | ||||
P9B30HP2F | 300 | 9.0 | 0.44 | 0.55 | FB |
P5B50HP2F | 500 | 5.0 | 1.38 | 1.65 | FB |
P2R5B52HP2F | 525 | 2.5 | 2.50 | 3.20 | FB |
P2B60HP2F | 600 | 2.0 | 3.40 | 4.20 | FB |
P4B60HP2F | 600 | 4.0 | 1.60 | 1.90 | FB |
MTO-3PV
Part Name | VDS min. [V] | ID max. [A] | Ron [Ω] | Package (HOUSE NAME) |
|
---|---|---|---|---|---|
typ. | max. | ||||
P85GC28HP2F | 280 | 85 | 0.035 | 0.045 | TO-247 |
P30W60HP2V | 600 | 30 | 0.185 | 0.230 | MTO-3PV |
FTO-220(Full mold type)
Part Name | VDS min. [V] | ID max. [A] | Ron [Ω] | Package (HOUSE NAME) |
|
---|---|---|---|---|---|
typ. | max. | P36F25HP2 | 250 | 36.0 | 0.08 | 0.12 | FTO-220AG |
P8F28HP2 | 280 | 8.0 | 0.38 | 0.50 | FTO-220AG |
P13F28HP2 | 280 | 13.0 | 0.23 | 0.30 | FTO-220AG |
P17F28HP2 | 280 | 17.0 | 0.17 | 0.23 | FTO-220AG |
P21F28HP2 | 280 | 21.0 | 0.13 | 0.18 | FTO-220AG |
P26F28HP2 | 280 | 26.0 | 0.11 | 0.15 | FTO-220AG |
P36F28HP2 | 280 | 36.0 | 0.08 | 0.12 | FTO-220AG |
P23F40HP2FM | 400 | 23.0 | 0.17 | 0.24 | FTO-220AG |
P5F50HP2 | 500 | 5.0 | 1.30 | 1.60 | FTO-220AG |
P10F50HP2 | 500 | 10.0 | 0.60 | 0.75 | FTO-220AG |
P20F50HP2 | 500 | 20.0 | 0.29 | 0.36 | FTO-220AG |
P3F60HP2 | 600 | 3.0 | 1.92 | 2.30 | FTO-220AG |
P4F60HP2 | 600 | 4.0 | 1.50 | 1.80 | FTO-220AG |
P5F60HP2 | 600 | 5.0 | 1.17 | 1.40 | FTO-220AG |
P7F60HP2 | 600 | 7.0 | 0.88 | 1.05 | FTO-220AG |
P10F60HP2 | 600 | 10.0 | 0.67 | 0.80 | FTO-220AG |
P12F60HP2 | 600 | 12.0 | 0.56 | 0.67 | FTO-220AG |
P15F60HP2F | 600 | 15.0 | 0.44 | 0.53 | FTO-220AG |
