600V Fast recovery diodes

▼600V FRD ML series
600V fast recovery diodes which
provide both industry top class low VF and low noise

▼600V FRD A series
Approximately 30% VF reduction and
approximately 40% IFSM tolerance improvement

▼600V FRD K series
These diodes have a proven track record over many years of use in PFC application critical operations

■Contribute to greater reduction of power consumption
■Achieves lower noise

Spec.

Contribute to greater reduction of power consumption

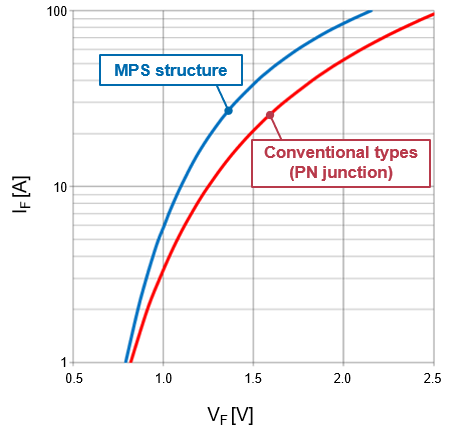

VF reduced by approximately 20% compared to conventional products, contributing to lower power consumption.
Achieves lower noise
Superior recovery characteristics achieve decreased Qrr, IRP, and VRP, as well as lower noise.
Product Specifications
Part Name Absolute Maximum Ratings Electrical Characteristics
IFtyp [A] IFSM [A] VRRM [V] VFmax [V] IF [A] IR max [uA] trr max [ns]
SF10L60MVM 10 200 600 1.10 10 10 115
SF10L60MSM 10 160 600 1.37 10 10 60
SF20L60MVM 20 250 600 1.10 20 10 130
SF20L60MSM 20 220 600 1.37 20 10 70

■Approximately 30% VF reduction and approximately 40% IFSM tolerance improvement compared to conventional products
■Contribute to greater reduction of power consumption
■Achieves lower noise

Spec.

Contribute to greater reduction of power consumption

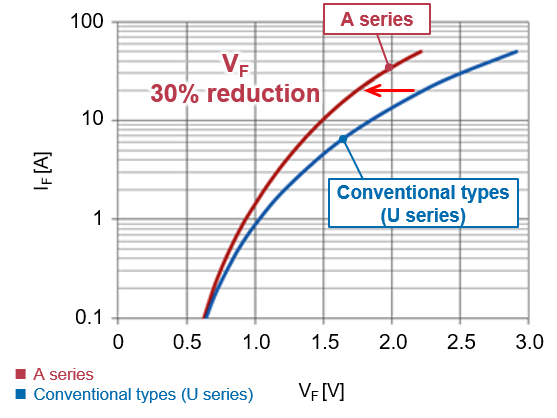

VF reduced by approximately 30% compared to conventional products, contributing to lower power consumption.
Achieves lower noise

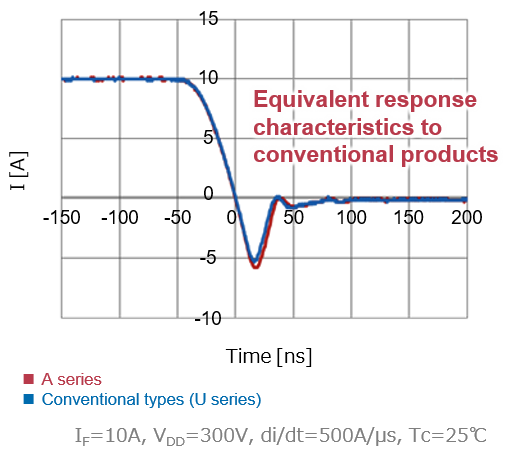

Superior recovery characteristics achieve decreased Qrr, IRP, and VRP, as well as lower noise.
Product Specifications
Part Name Absolute Maximum Ratings Electrical Characteristics
IFtyp [A] IFSM [A] VRRM [V] VFmax [V] IF [A] IR max [uA] trr max [ns]
SF10L60AM 10 180 600 2.10 10 10 28
SF20L60AM 20 260 600 2.10 20 10 35
D10FR60LA 10 140 600 2.10 10 10 28
D15FR60LA 15 220 600 2.10 20 10 30

■A well-balanced FRD with a focus on low VF characteristics

Spec.

A well-balanced FRD with a focus on low VF characteristics

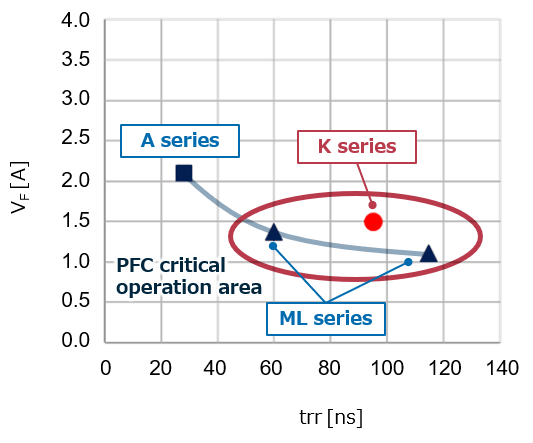

10A/600V　VF-trr tradeoff curve
The K Series are well-balanced FRD with a focus on low VFcharacteristics.
Product Specifications
Part Name Absolute Maximum Ratings Electrical Characteristics
IF typ [A] IFSM [A] VRRM [V] VFmax [V] IF [A] IR max [uA] trr max [ns]
SF3K60M 150 600 3 90 1.45 10 80
SF5K60M 150 600 5 120 1.5 10 85
SF8K60M 150 600 8 150 1.5 10 90
SF10K60M 150 600 10 180 1.5 10 95
SF20K60M 150 600 20 240 1.5 10 95
SF20L60MVM 150 600 20 250 1.1 10 130
SF10KC60M 150 600 10 120 1.5 10 85
SF20KC60M 150 600 20 180 1.5 10 95
