High-Voltage Surface-Mount Diode for Automotive Applications Release

Nov. 28, 2025

~ Achieves surface mounting for a withstand voltage over 1,000 V, balancing a high voltage rating and miniaturization ~

Shindengen Electric Manufacturing Co., Ltd. is adding new products to its high-voltage surface-mount CG Package lineup, designed for automotive applications.

In recent years, as inverters in automotive and industrial equipment become smaller and more advanced, demand has grown for compact, high-voltage surface-mount diodes.
Achieving high withstand voltages requires sufficient terminal spacing, but space constraints in surface-mount packages make securing adequate insulation distance difficult.Specifically, international standards recommend a terminal spacing of 5.6 mm or more for voltages exceeding 1,000 V, and meeting this requirement necessitates innovative package design.

High-voltage surface-mount package "CG package"

To address these needs, Shindengen Electric Manufacturing has added two new models to its already mass-produced high-voltage surface-mount CG Packages that can also be used in automotive applications.
The CG Package ensures insulation performance compliant with the international standard IEC 60664-1 by extending the terminal spacing to 5.6 mm.This enables it to handle high-voltage circuits exceeding 1,000 V effective voltage even in Pollution Degree 2 environments. While through-hole packages have traditionally dominated high-voltage applications, this package enables high-voltage capability via surface mount technology.
The newly added automotive-grade variants comply with AEC-Q101, meeting the high reliability and stable operation under high-temperature conditions required for automotive equipment.This contributes to the high-voltage capability and miniaturization of inverters in the automotive and industrial equipment sectors.

■ Features

Surface-mount package capable of handling high voltages.
This package has a distance between terminals to 5.6 mm.
This makes it possible to handle high voltages exceeding an effective voltage of 1000 V even in Pollution Degree 2 environments*1.
*1 IEC60664ー1

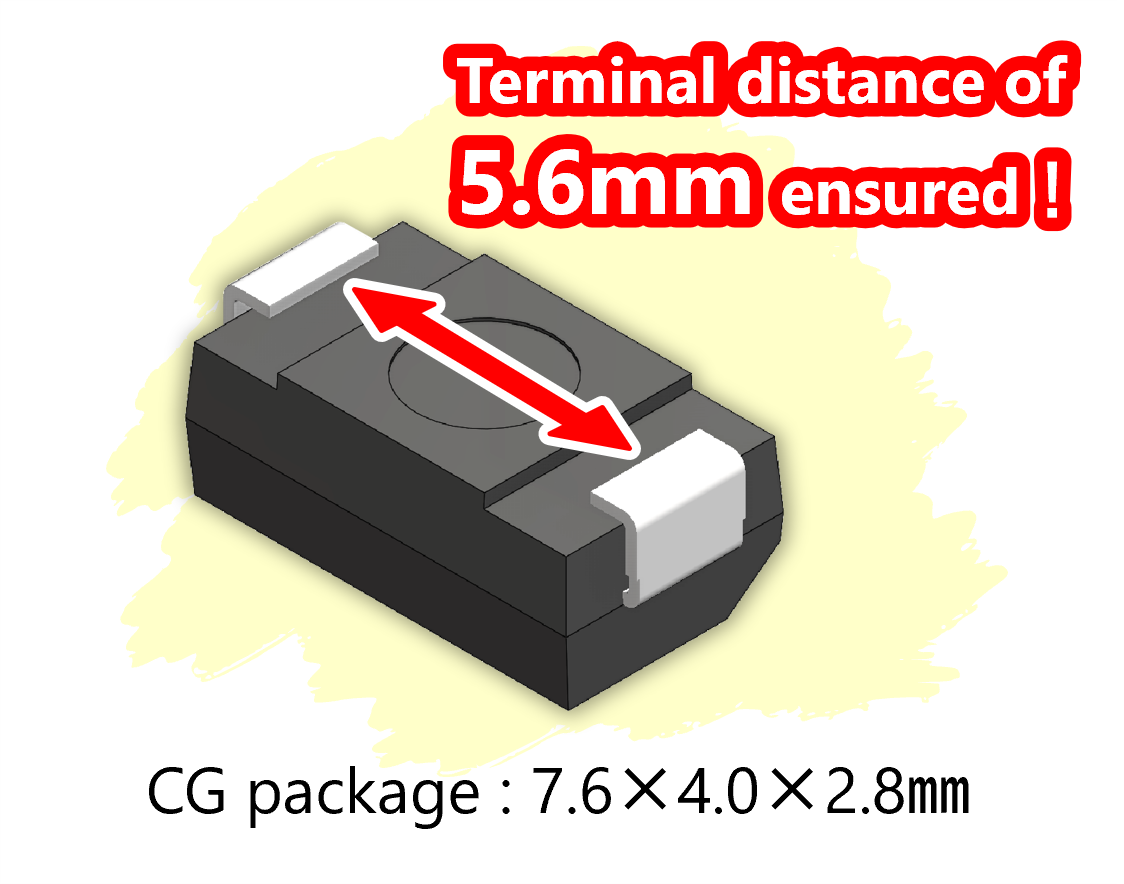

High-voltage surface-mount package with a terminal spacing of 5.6mm


　Other Features
　　・AEC-Q101 compliant
　　・Pb-free terminals

■ 製品仕様

Products

Absolute Maximum Ratings
（Tc=25°C）

 Electrical Characteristics
（Tc=25°C）		 AEC-Q101 Package
VRRM
 [V]		 IF
 [A]		 IFSM
[A]		 VF max.
[V]		 IR max.
[A]

trr
[ns]
D1CG120K　NEW 1200 1.0 18 3.0 10 85 ○ CG
D3CG120K　NEW 1200 2.2 160 2.1 10 85 ○ CG
D3FK120 1200 2.2 160 2.1 10 80 - 2F

■ Typical applications
　・Automotive applications
　　xEV Inverter (DESAT)
　　OBC (Bootstrap)
　　DDC (Snubber)
　・Industrial equipment applications用途
　　Industrial Inverter (DESAT)
　　Servo (DESAT)
　　DDC (Snubber)

…etc.

■ External Dimensions
Dimensional diagram of the high-voltage surface-mount package "CG package"

■ Availability
　April 2026

■ Factory Location
　Akita Shindengen, Co., Ltd.
