New Product
Thyristors with greatly improved tolerance to false triggering released
~Contributing to the reliability of consumer electronics~
Mar. 31, 2025
Shindengen Electric Manufacturing has launched the KC5FB60HV thyristor for consumer electronics.
In recent years, “smart lighting” has become a trend in the lighting market, and there has been a move towards higher functionality, such as remote control and automation. As a result, circuits have become more complex with many switches and relays being installed. Thyristors that protect these devices from inrush currents are required to be highly reliable and able to withstand sudden potential differences that can cause false triggering (malfunctions).
In order to meet these needs, Shindengen Electric Manufacturing has released the KC5FB60HV thyristor for consumer electronics. By reviewing the internal structure, we have improved the dv/dt (critical rate of rise of off-state voltage) from approximately 20V/μs for our previous products※1 to over 10,000V/μs※2. This improves the tolerance to false triggering, and contributes to the reliability of the equipment in which they are installed.
Furthermore, the use of halogen-free resin also reduces the environmental impact.
※1Comparison with “KC5FB60H” and “KC5FB60HR”
※2 Ta=100°C, RGK=1000Ω, CGK=0.1μF
■ Features
・Improved tolerance to false triggering

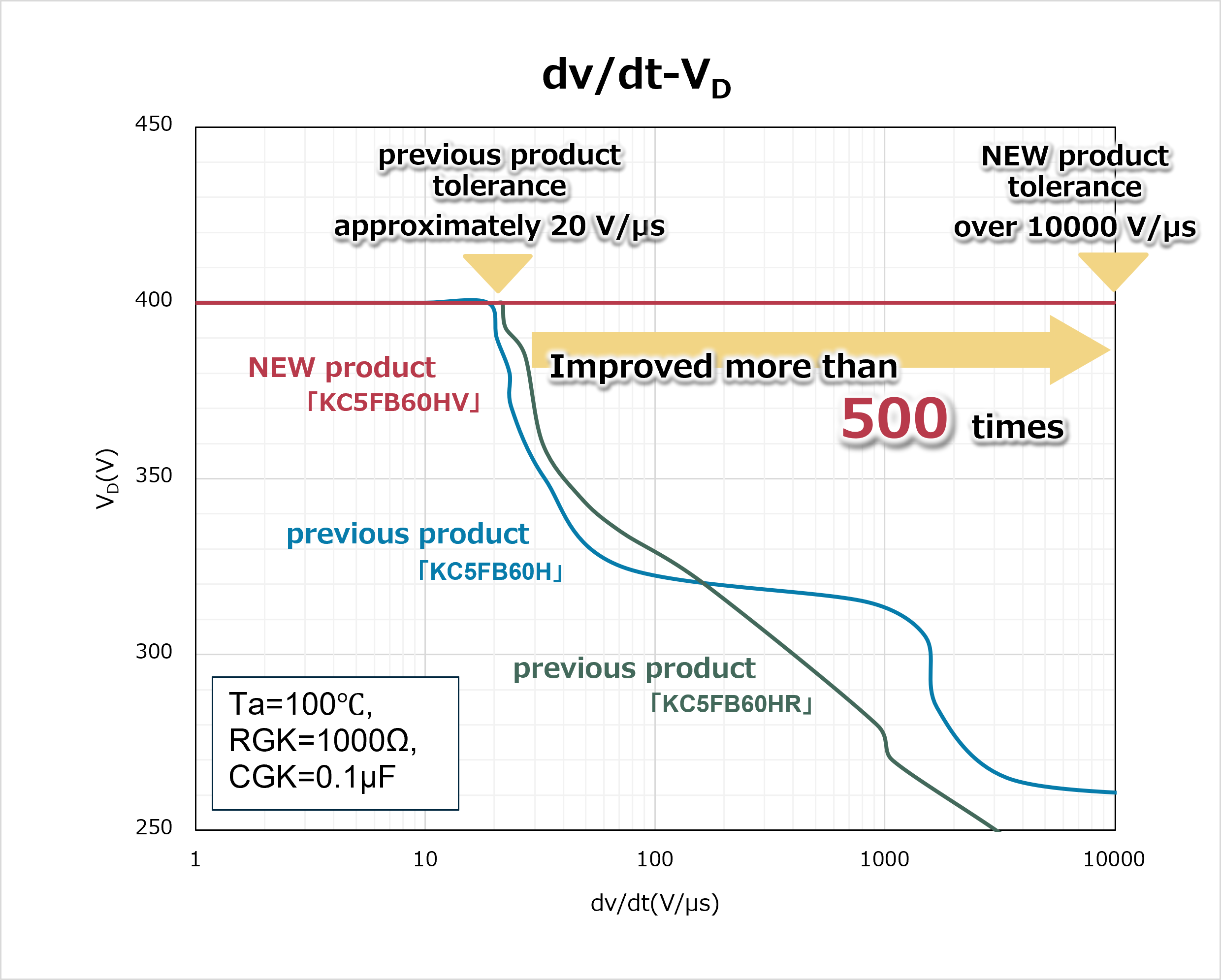

Compared to our previous products, we have improved dv/dt (critical rate of rise of off-state voltage) by more than 500 times, contributing to the reliability of the devices.
※1Comparison with “KC5FB60H” and “KC5FB60HR”
※2 Ta=100°C, RGK=1000Ω, CGK=0.1μF
・Environmentally friendly halogen-free resin is used.
■ Typical Applications
・For Inrush Prevention Circuits for the Lighting Market
・Other Consumer Equipment
■ External Dimensions Diagram
■ Equivalent Circuit
■ Product Specifications
Products | Tstg [℃] |
Tj [℃] |
IT(AV) [A] | VDRM VRRM [V] |
ITSM [A] |
IDRM Max. IRRM Max. [μA] |
VT Max. [V] |
VGT Max. [V] |
IGT Max. [μA] |
Rth(j-c) [℃/W] |
---|---|---|---|---|---|---|---|---|---|---|
KC5FB60HV | -55~150 | -40~125 | 5 (Tc=100℃) |
600 | 90 | 10 (VD=VR=600V) |
1.8 (IT=15A) |
0.8 | 50 | 3 |
Please note that the information contained in releases is current as of the date of press announcement, but may be subject to change without prior notice.
