Launching power module MG031 series for motor inverter circuits
Mar. 12, 2019
1.Overview
Demand for smaller and lighter parts is increasing in the automotive industry as the number of ECUs for each vehicle increases due to more automation in the market.
Our MG031 series, developed for motor inverter circuits, enables handling of higher current by utilizing a full copper clip connection and exposing the lead frame.
2.Features
- Adopted internal connection structure that uses connectors (soldered copper clips) to support large currents.
Improved strength and reliability of the connection and lowered the internal wiring resistance compared to conventional aluminum wire bonded structures.
- Made more compact and capable of larger current through lead frame exposure(※)
- Tch=175℃ guarantee

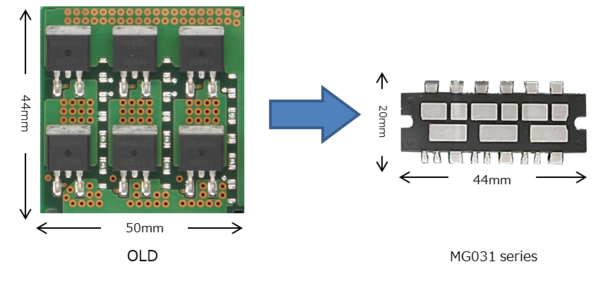

Ensures the reliability required for vehicle installations - Approximately 60% reduction size (2,200mm2 → 880mm2)
※ Non-insulated type,Insulated one is currently under development
3.Typical applications
- Motor Inverter Circuit for automobile markets
- Motor Inverter Circuit for industrial machinery markets
4.Product specifications
Products name | MG031B090004A | MG031G148004A | |
Absolute Maximum Ratings | VDSS | 40V | 40V |
---|---|---|---|
ID | 90A | 148A | |
IDP | 360A | 592A | |
PT | 125W | 154W | |
Tch | 175℃ | 175℃ | |
Electric characteristics | RDS(ON) (VGS=10V) |
3.2mΩ(max.) | 2.2mΩ(max.) |
Vth | 2.0V(typ.) | 3.0V(typ.) | |
Rth(j-c) | 1.2℃/W(max.) | 0.97℃/W(max.) | |
Detail | MG031B090004A | MG031G148004A |
5.External appearance, circuit diagram
-

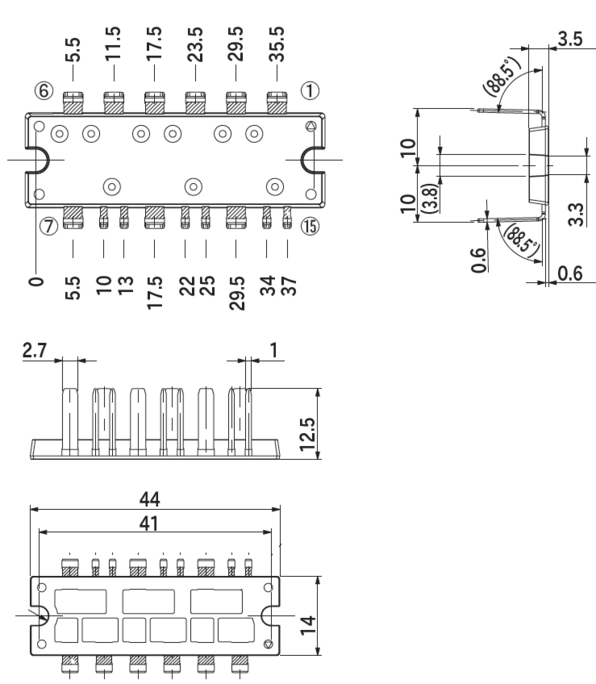

- External appearance
-
- Circuit diagram
6.Factory Location
Lumphun Shindengen Co., Ltd. Etc.
7.Availability
Available
