Announcing the launch of the JH Series and MG038 Series large capacity three phase bridge diodes

Apr. 16, 2019

1.Overview

The shift towards higher power and higher density continues to advance in the industrial equipment and air conditioner markets, and has also resulted in greater demand for smaller bridge diodes.
In response, Wehave produced a series of compact bridge diodes with 100 to 200 A class rated current (IF(AV)).
These products continue to maintain insulation distances compliant with various safety standards.

2.Features

「JH Series」

• Board mountable thin DIP packages
• AC isolation type which makes for easier pattern layouts
• High current capacity: Rated current (I_F(AV)) = 100 A
• High heat dissipation structure: Thermal resistance 0.2℃/W
• UL1557 certified
• 5.6 mm interval distance maintained between fins and leads

「MG038 Series」

• Same package height (17 mm) as standard IGBT modules
• AC isolation type which takes into account connection to bus bars, etc.
• High current capacity: Rated current (I_F(AV)) = 150, 200 A
• High heat dissipation design: Thermal resistance 0.05℃/W
• UL1557 certified
• 5.6 mm interval distance maintained between fins and leads

3.Lineups

type	Products name	IF(AV)	VRRM	VF(max.)	IR(max.)	Rth(j-c)	series
Three phase	MG038A200080A	200A	800V	1.05V※	10µA	0.05℃/W	MG038
	MG038B150080A	150A	800V	1.05V※	10µA	0.06℃/W	MG038
	D100JHT160V	100A	1600V	1.15V※	10µA	0.2℃/W	JH
	D100JHT120V	100A	1200V	1.17V※	10µA	0.2℃/W	JH
	D100JHT80V	100A	800V	1.10V※	10µA	0.2℃/W	JH
Single phase	D70JHB80V	70A	800V	1.10V※	10µA	0.3℃/W	JH

※：Per 1 element

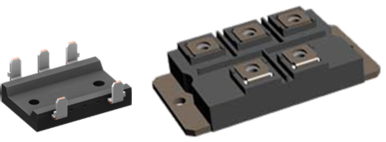

4.External appearance and equivalent circuit diagram

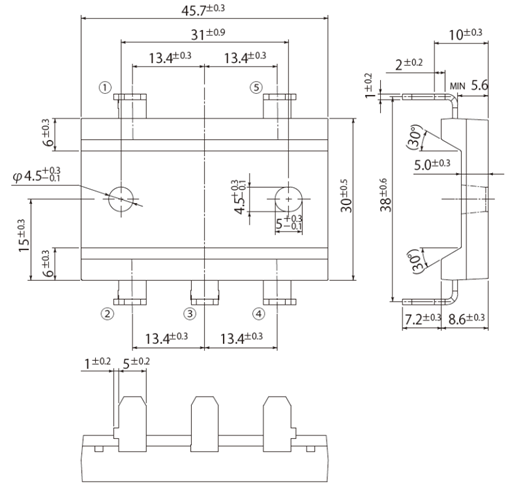

「JH Series」

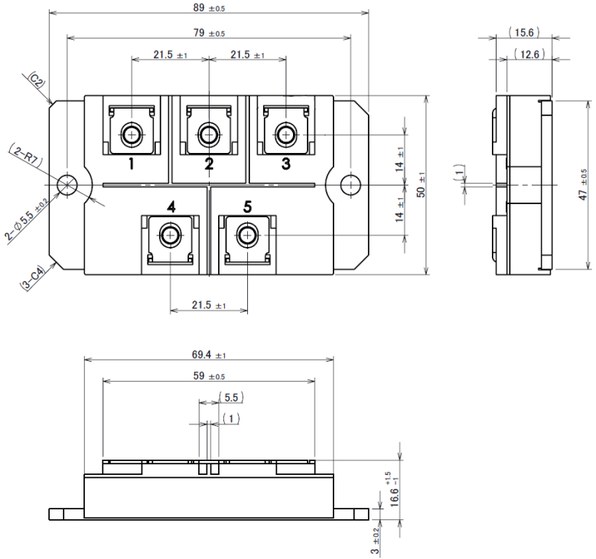

「MG038 Series」

5.Factory Location

Akita Shindengen Co., Ltd.
Lumphun Shindengen Co., Ltd. Etc.

6.Availability

Available
