- Announcing the launch of the A Series high speed 600 V fast recovery diodes
New Product
Announcing the launch of the A Series high speed 600 V fast recovery diodes
Mar. 29, 2019
1.Overview
Fast recovery diodes (hereinafter "FRD") are required to have high speed and low loss for use in power circuits.
The A Series is a FRD with a low loss withstand voltage of 600 V compared to existing high speed FRD (U Series). It is mounted on a Shindengen original FR package, similar to the TO-252 package, in order to achieve high density, large current (10 and 15 A), and high IFSM withstand capacity.
2.Features
- Reduction of Vf (Approximately 30%) and improvement of IFSM withstand capacity (40% Improvement) while still maintaining high speed
- High withstand voltage: VRRM = 600 V
- Large current: IF(AV) = 10, 15 A
- Package: similar to JEDEC TO-252 (house name: FR)
- AEC-Q101 compliant
-
-

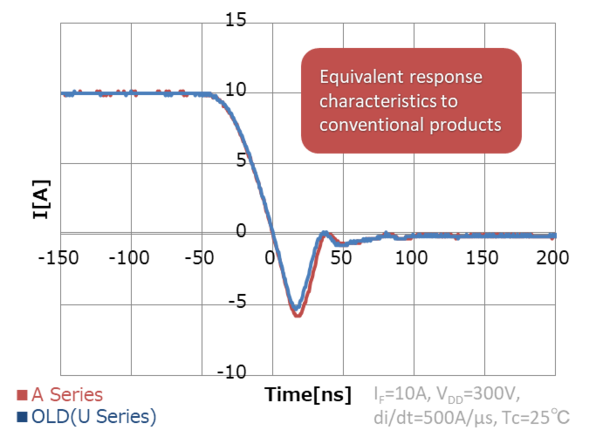

- Fig1-1. Comparison (of recovery characteristics) with U Series
-
-
-

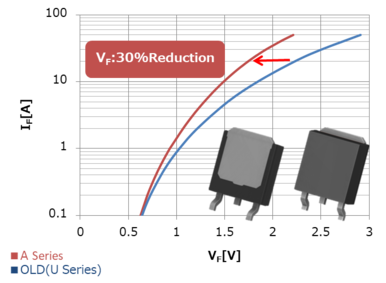

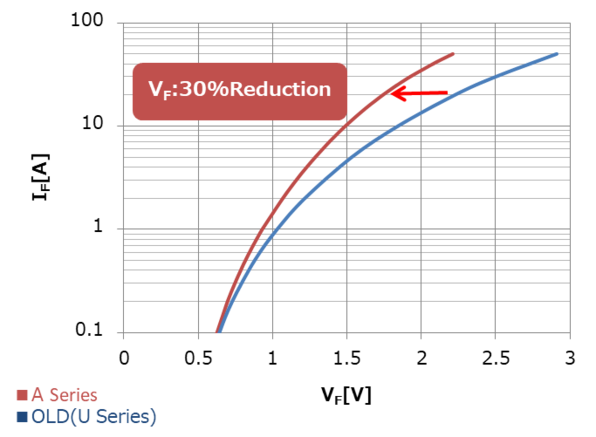

- Fig1-2. Comparison (of VF-IF characteristics) with U Series
-
-
-

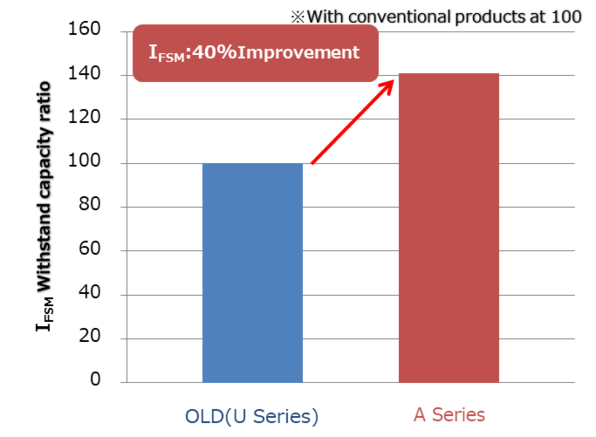

- Fig1-3. Comparison (of IFSM withstand capacity ratio) with (U Series)
-
-
-

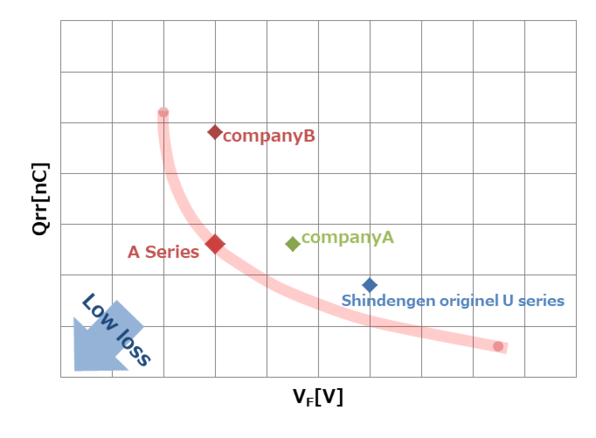

- Fig2. Comparison with the products of other companies
-
3.Product specifications
| Products name | IF(AV) | VRRM | VF(max) | trr(max) | IR(max) | External appearance |
|
NEW D10FR60LA |
10A | 600V | 2.1V | 28ns | 10µA | Similar to TO-252（FR） |
|---|---|---|---|---|---|---|
| NEW D15FR60LA | 15A | 600V | 2.1V | 30ns | 10µA | |
| Under development SF20L60LAM (Provisional) | 20A | 600V | 2.1V※ | 35ns※ | 10µA | SC-91（FTO-220A） |
※：Under assessment
4.Factory Location
Lumphun Shindengen Co., Ltd. Etc.
5.Availability
Available from Mar.2019
