Additional line-up of TO-252 package

Nov. 20, 2018

1.Overview

Our IF(AV)=10 to 20A class large current diodes in TO-263 equivalent packages were extended into the much wanted, popular, and thinner TO-252 equivalent packages previously. This time, we have added our series of low Vf schottky barrier diodes and ultra-fast recovery diodes in the line-up to allow customers to select from a wider range of products to find optimal solutions for their needs.

2.Features

・External configuration similar to JEDEC TO-252.(housename:FR)
・Can be mounted on TO-252 soldering pads
・Thin type, Unit height is approximately 2.3mm
・Accommodation of large current: Using Cupper clip form to accommodate large current
・Tj=175℃gurantee … ※1
・AEC-Q101 making plans for AEC-Q101
・Mounting based terminal shape designs: Optimized terminal structures allow for easier solder fillet formation

※1:Schottky barrier diodes[SLSBD]

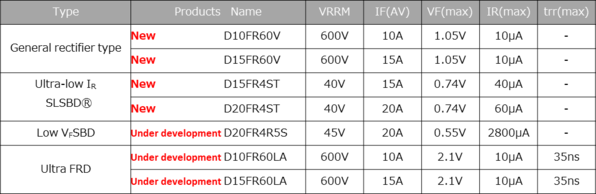

3.Product specifications

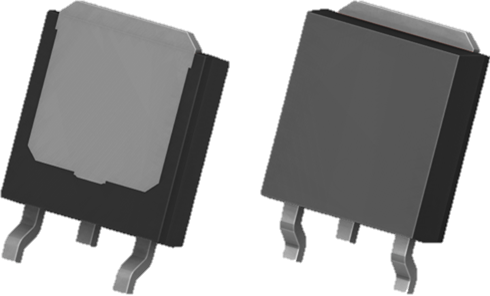

4.External appearance

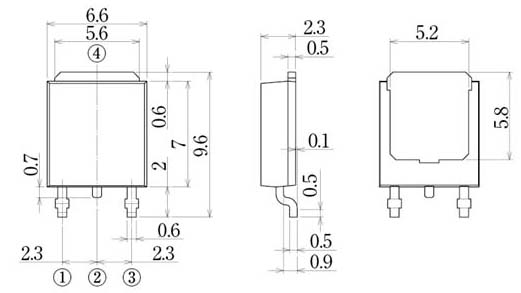

  • e.g. soldering pad scales

5.Start of production

In mass production

6.Factory Location

Lumphun Shindengen Co., Ltd., etc.

7.Contact information

Contact your local distributor for details.

Notes

・The content of these materials may be changed at any time without prior notice for product improvements or other reasons.
・Our company shall not be held responsible or liable for any damages, or infringement of patents or other rights which occur as a result of the use of these materials.
・Reproduction of any portion of these materials without prior written authorization is strictly prohibited.

* The contents listed are as of Nov 20, 2018
