New Product Information Introducing the Industry's First * 800V Tj = 150°C Guaranteed Thyristor

Oct. 4, 2017

Shindengen Electric Manufacturing Co., Ltd. (headquartered in Otemachi, Chiyoda-ku) has developed the [KC8SF80] thyristor which has a guaranteed large current and rated voltage of 800V and Tj = 150°C.

1. Overview

Thyristors required in generators, industrial equipment, and other applications usually have a rated voltage of 800V but with only a guaranteed Tj up to 125°C. Products with a guaranteed Tj of 150°C were only available for products with a 600V rated voltage.
In recent years there has been an increase in demand for guaranteed Tj = 150°C for large current compatible 800V products, and in response Shindengen has developed the [KC8SF80] thyristor which is the industry's first 8A current, 800V rated voltage thyristor with a guaranteed Tj = 150°C.
Going forward, we plan to further expand our current capacity lineup.

*According to internal study

2. Features

  • High current, high-withstand voltage 8A current, 800V rated voltage
  • Tj = 150°C guaranteed at 800V rated voltage
  • Utilizes insulated SC-91 full mold package

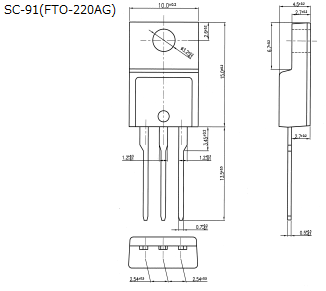

  • SC-91(FTO-220AG)

3. Rating Table

Product NameAbsolute Maximum RatingsElectrical Characteristics



KC8SF80 800 800 8 130 -40~150 1.5 20 15

4. Product Diagram

  • Product Diagram

5. Start of Production

October of 1st, 2017

6. Production Factory

Lumphun Shindengen, etc.

7. Contact Information

Shindengen Electric Manufacturing Co.,Ltd.
Marketing & Sales Dept. Marketing Sect.
TEL +81-3279-4687
FAX +81-3279-4537
e-mail: dendeba@shindengen.co.jp

* The contents listed are as of Oct 04, 2017

Please note that the information contained in releases is current as of the date of press announcement, but may be subject to change without prior notice.
