New Product Information Launch Announcement of TO-277A Package for Large Current Support in Cars

Jun. 9, 2017

Shindengen Electric Manufacturing Co., Ltd. (headquartered in Otemachi, Chiyoda-ku) launched sales for the small TO-277A (JEDEC name) package that can handle large currents in cars.

1. Overview

Cars equipped with digital features and high functionality are now largely required to have smaller parts and must support large currents. To meet these requirements, we have significantly increased the support range for currents by applying a copper clip to the internal structure for the connections. We developed the TO-277A package that has a footprint that is 50% less than our conventional TO-252 package. We mass produce our general rectifiing diodes that we initially launched and our single chip specification for two types of Schottky barrier diodes: a low IR balance type and an ultra-low IR type . Going forward, we are planning on expanding our product line, such as center tap specifications.

2. Features

• Package JEDEC TO-227A
• Unit height 1.1 mm (TO-252 is about 2.6 mm)
• Tj = 175°C guarantee (Schottky barrier diode ultra low IR type SLSBD^®)
• AEC-Q101 compliance
• High heat dissipation with a 0.3 mm lead thickness (JEDEC: 0.25 mm)
• Supports large currents by using connectors (soldered copper clips) in an internal connection structure
• Adopted a simple, fillet-type configuration with both anode and cathode terminals

3. Product Specifications

Type	Product name	IF (AV)	VRPM	VF max	IR max	TI
		[A]	[V]	[V]	[μA]	[℃]
SBD Low IR balance type Y-series	D5FY4R5SY	5	45	0.59	200	150
	D10FY4R5SY	10	45	0.59	400
	D15FY4R5SY	15	45	0.59	500
	D5FY6SY	5	60	0.67	200
	D10FY6SY	10	60	0.67	400
	D15FY6SY	15	60	0.67	500
	D5FY10SY	5	100	0.80	200
	D10FY10SY	10	100	0.80	400
	D15FY10SY	15	100	0.80	500
SBD Ultra-low IR type SLSBD®-series	D5FY4R5ST	5	45	0.74	15	175
	D10FY4R5ST	10	45	0.74	30
	D15FY4R5ST	15	45	0.74	40
	D5FY6ST	5	60	0.78	15
	D10FY6ST	10	60	0.78	30
	D15FY6ST	15	60	0.78	40
	D5FY10ST	5	100	0.86	15
	D10FY10ST	10	100	0.86	30
	D15FY10ST	15	100	0.86	40
	D5FY15ST	5	150	0.88	15
	D10FY15ST	10	150	0.88	30
	D15FY15ST	15	150	0.88	40
General rectifier type	D10FY60VE	10	600	1.10	10	150

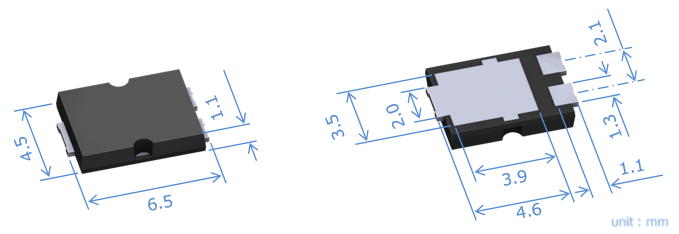

4. External appearance

5. Start of Production

June 2017

6. Factory Location

Akita Shindengen Co., Ltd. etc

7. Contact Information

Shindengen Electric Mfg. Co., Ltd.
Sales Div. Group Marketing & Sales Department
TEL +81-3-3279-4687
FAX +81-3-3279-4537
e-mail: dendeba@shindengen.co.jp

* The contents listed are as of June 9, 2017
