Notice of start of mass production of "KC5FB60HRT" 150°C-guaranteed thyristors (for inrush current prevention)

Feb. 22, 2016

Shindengen Electric Manufacturing Co., Ltd. (head office: Ote-machi, Chiyoda-ku) has developed and started the mass production of “KC5FB60HRT” inrush current prevention thyristors which guarantee the junction temperature to 150°C.

1. Outline

For more than 30 years, we have been supplying semiconductor elements which take advantage of the thyristor construction to have various characteristics such as SIDAC and two-terminal Thyristor Surge Suppressors, etc. to the communications, lighting and motorcycle markets.
Recently in this market, the demand for guaranteed high temperatures has been increasing, and we have developed and started mass production of the “KC5FB60HRT” which guarantees a junction temperature of 150°C while still being a high-sensitivity product.

2. Features

  • Junction temperature (Tj) guaranteed to 150℃(VDRM = 600V)
  • High sensitivity
  • Small SMD
  • Perfect for inrush current prevention circuits

3. Product lineup

[Uni-directional type]

Product name Absolute maximum rating Electric characteristics
VDRM
[Vmax]
IT(AV)
[A]
Tj
[℃max]
IGT
[mAmax]
KC3FB40H 400 3 125 0.1
KC5FB40H 400 5 125 0.1
KC5FB60H 600 5 125 0.1
KC5FB60HR 600 5 125 0.1
KC5FB60HRT New 600 5 150 0.1

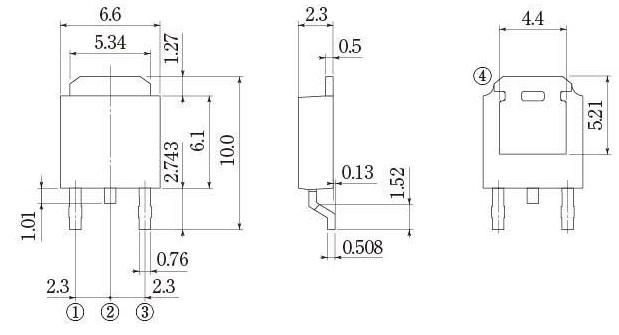

4. Outline drawing (FB package (TO-252))

Unit: mm

5. Sample price

100 JPY

6. Production factory

Higashine Shindengen Co., Ltd, etc.

7. Contact information

Shindengen Electric Manufacturing Co., Ltd.
Sales Div. Group Marketing & Sales Department
TEL +81-3-3279-4687
FAX +81-3-3279-4537

* The above information is correct as of 12 February 2016.

Please note that the information contained in releases is current as of the date of press announcement, but may be subject to change without prior notice.
