TVS standard packages

  • Uni/Bi – Directional type (400W, 600W, 3000W)
  • Zener voltage compatible with 48V battery system (ISO21780)
  • Suitable for lightning surge protection (IEC61000-4-5)
  • Suitable for transient surge protection (ISO7637-2/ISO16750-2)
  • AEC-Q101

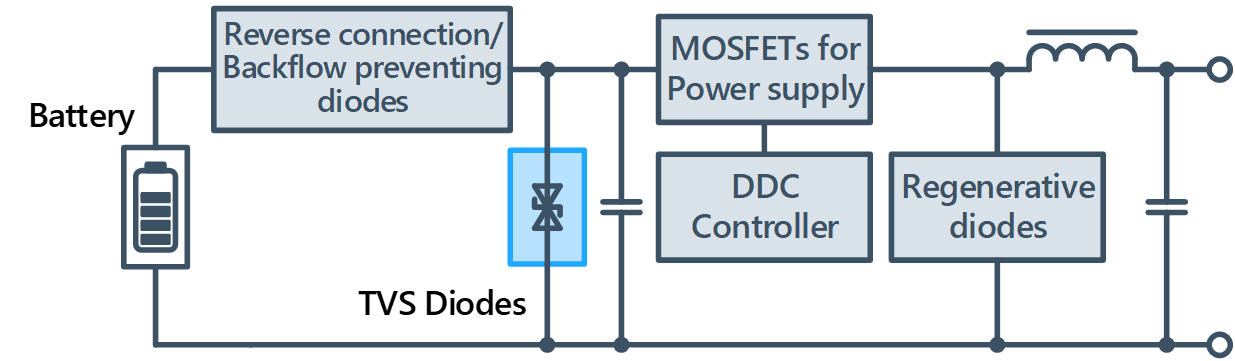

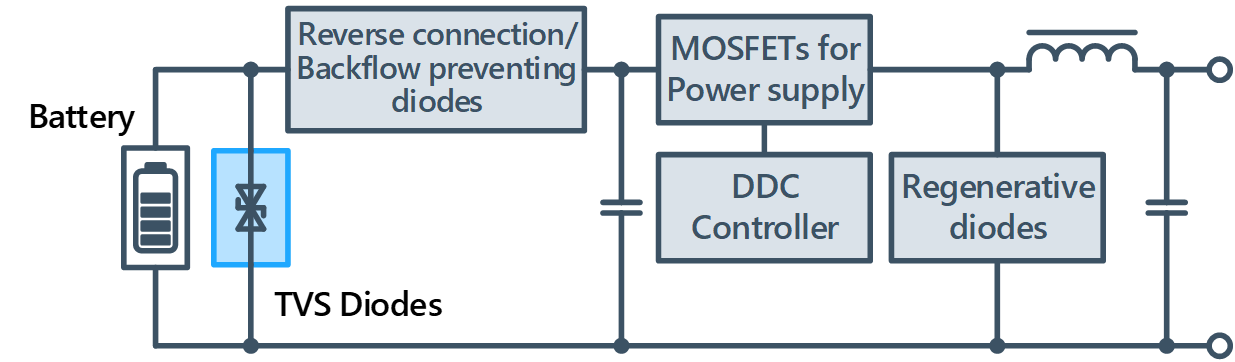

ECU protection circuit

SMA series

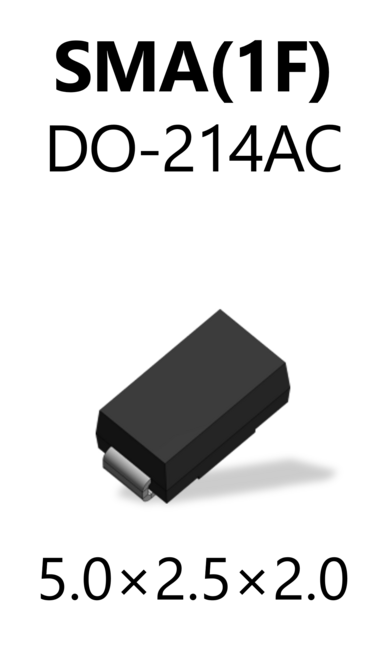

1F(DO-214AC) Package

Uni-directional TVS

Part Name

Absolute Maximum Ratings

Electrical Characteristics

PRSM[W]

Tstg[°C]

Tj[°C]

VR(DC)[V]

VBR [V]

IR max[uA]

min

max

ST04-12F1

400

-55～175

175

9

11.5

13.5

5

ST04-14F1

400

-55～175

175

12.8

13.5

15.0

5

ST04-16F1

400

-55～175

175

13.6

14.4

17.6

5

ST04-18F1

400

-55～175

175

15.3

16.8

19.1

5

ST04-20F1

400

-55～175

175

17

18.8

22.0

5

ST04-24F1

400

-55～175

175

20

22.0

25.6

5

ST04-27F1

400

-55～175

175

23

25.0

29.0

5

ST04-30F1

400

-55～175

175

24

28.0

32.0

5

ST04-33F1

400

-55～175

175

25

31.0

35.0

5

ST04-36F1

400

-55～175

175

27

34.0

38.0

5

ST04-39F1

400

-55～175

175

30

37.0

41.0

5

ST03-43F1

300

-55～150

150

33

40.0

45.0

5

ST03-47F1

300

-55～150

150

37

42.0

52.0

5

ST03-58F1

300

-55～150

150

45

52.0

64.0

5

ST03-63F1

300

-55～150

150

53

59.8

66.1

5

ST03-68F1

300

-55～150

150

58

64.4

71.2

5

ST02-75F1

200

-55～150

150

61

70.0

79.0

5

ST02-82F1

200

-55～150

150

67

74.0

90.0

5

ST02-100F1

200

-55～150

150

80

90.0

110.0

5

Bi-directional TVS

Part Name

Absolute Maximum Ratings

Electrical Characteristics

PRSM[W]

Tstg[°C]

Tj[°C]

VR(DC)[V]

VBR [V]

IR max[uA]

min

max

DL04B-27F1

400

-55～175

175

23

25.0

29.0

5

DL04B-30F1

400

-55～175

175

24

28.0

32.0

5

DL04B-33F1

400

-55～175

175

25

31.0

35.0

5

DL04B-36F1

400

-55～175

175

27

34.0

38.0

5

DL04B-39F1

400

-55～175

175

30

37.0

41.0

5

DL04B-43F1

400

-55～150

150

33

40.0

45.0

5

DL04B-47F1

400

-55～150

150

37

42.0

52.0

5

DL04B-58F1

400

-55～150

150

45

52.0

64.0

5

DL04B-63F1

400

-55～150

150

53

59.8

66.1

5

DL04B-68F1

400

-55～150

150

58

64.4

71.2

5

DL04B-75F1

400

-55～150

150

61

70.0

79.0

5

DL04B-82F1

400

-55～150

150

67

74.0

90.0

5

DL04B-100F1

400

-55～150

150

80

90.0

110.0

5

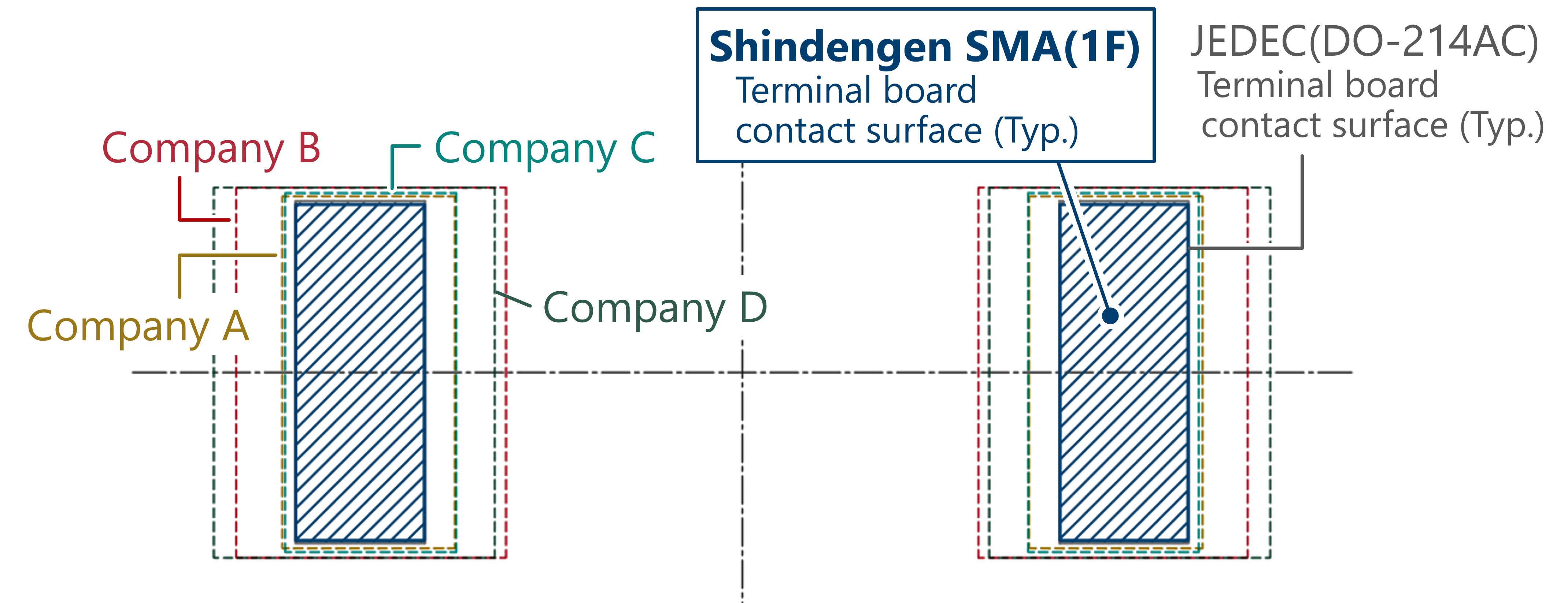

Footprint comparison

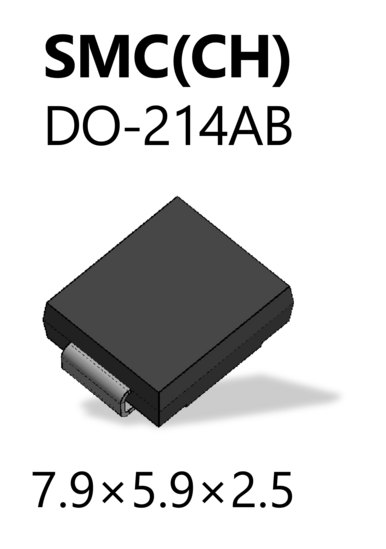

M2F(DO-214AA) Package
SMB series

Uni-directional TVS

Part Name

Absolute Maximum Ratings

Electrical Characteristics

PRSM[W]

Tstg[°C]

Tj[°C]

VR(DC) [V]

VBR [V]

IR max [uA]

min

max

ST06-12M2

600

-55～175

175

9

11.5

13.5

5

ST06-14M2

600

-55～175

175

12.8

13.5

15.0

5

ST06-16M2

600

-55～175

175

13.6

14.4

17.6

5

ST06-18M2

600

-55～175

175

15.3

16.8

19.1

5

ST06-20M2

600

-55～175

175

17

18.8

22.0

5

ST06-24M2

600

-55～175

175

20

22.0

25.6

5

ST06-27M2

600

-55～175

175

23

25.0

29.0

5

ST06-30M2

600

-55～175

175

24

28.0

32.0

5

ST06-33M2

600

-55～175

175

25

31.0

35.0

5

ST06-36M2

600

-55～175

175

27

34.0

38.0

5

ST06-39M2

600

-55～175

175

30

37.0

41.0

5

ST06-43M2

600

-55～150

150

33

40.0

45.0

5

ST06-47M2

600

-55～150

150

37

42.0

52.0

5

ST06-58M2

600

-55～150

150

45

52.0

64.0

5

ST06-63M2

600

-55～150

150

53

59.8

66.1

5

ST06-68M2

600

-55～150

150

58

64.4

71.2

5

ST06-75M2

600

-55～150

150

61

70.0

79.0

5

ST06-82M2

600

-55～150

150

67

74.0

90.0

5

ST06-100M2

600

-55～150

150

80

90.0

110.0

5

Bi-directional TVS

Part Name

Absolute Maximum Ratings

Electrical Characteristics

PRSM[W]

Tstg[°C]

Tj[°C]

VR(DC)[V]

VBR [V]

IR max[uA]

min

max

DL06B-27M2

600

-55～175

175

23

25.0

29.0

5

DL06B-30M2

600

-55～175

175

24

28.0

32.0

5

DL06B-33M2

600

-55～175

175

25

31.0

35.0

5

DL06B-36M2

600

-55～175

175

27

34.0

38.0

5

DL06B-39M2

600

-55～175

175

30

37.0

41.0

5

DL06B-43M2

600

-55～150

150

33

40.0

45.0

5

DL06B-47M2

600

-55～150

150

37

42.0

52.0

5

DL06B-58M2

600

-55～150

150

45

52.0

64.0

5

DL06B-63M2

600

-55～150

150

53

59.8

66.1

5

DL06B-68M2

600

-55～150

150

58

64.4

71.2

5

DL06B-75M2

600

-55～150

150

61

70.0

79.0

5

DL06B-82M2

600

-55～150

150

67

74.0

90.0

5

DL06B-100M2

600

-55～150

150

80

90.0

110.0

5

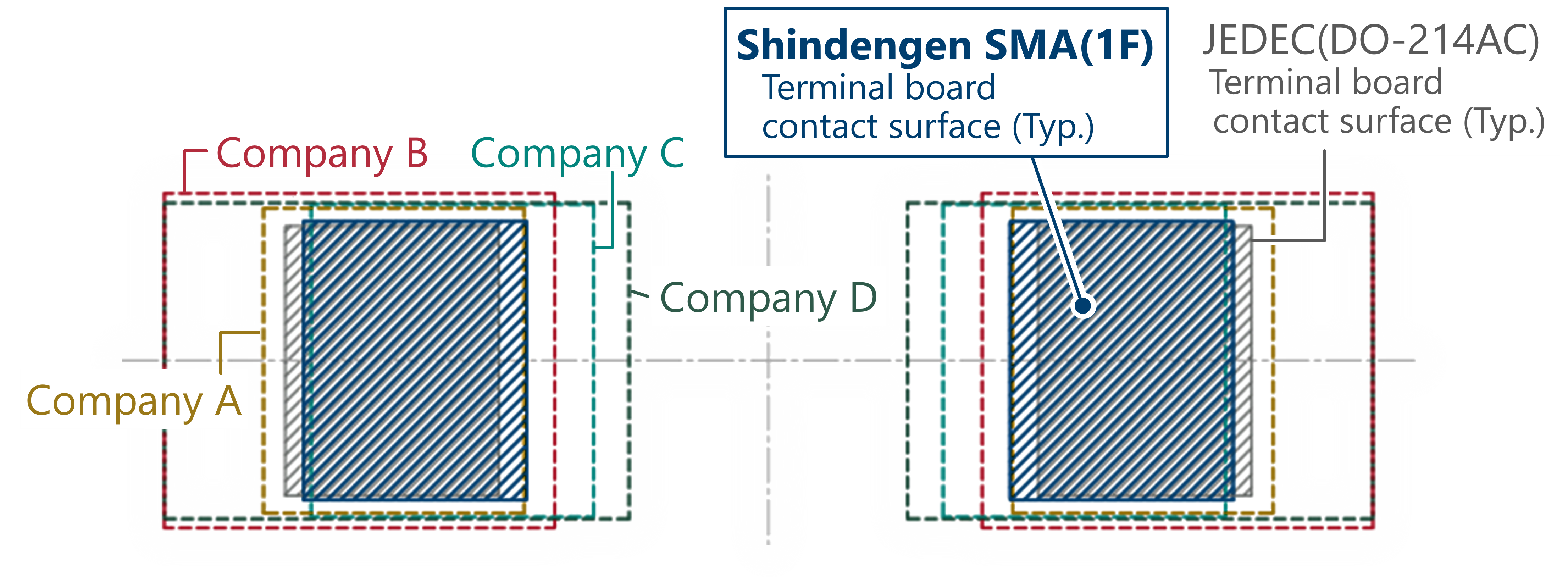

Footprint comparison

CH(DO-214AB) Package
SMC series

Uni-directional TVS

Part Name

Absolute Maximum Ratings

Electrical Characteristics

PRSM[W]

Tstg[°C]

Tj[°C]

VR(DC) [V]

VBR [V]

IR max[uA]

min

max

ST30-12CH

3000

-55～175

175

9

11.5

13.5

5

ST30-14CH

3000

-55～175

175

12.8

13.5

15.0

5

ST30-16CH

3000

-55～175

175

13.6

14.4

17.6

5

ST30-18CH

3000

-55～175

175

16

17.2

19.1

5

ST30-20CH

3000

-55～175

175

17

18.8

22.0

5

ST30-24CH

3000

-55～175

175

20

22.0

25.6

5

ST30-27CH

3000

-55～175

175

23

25.0

29.0

5

ST30-30CH

3000

-55～175

175

24

28.0

32.0

5

ST30-33CH

3000

-55～175

175

25

31.0

35.0

5

ST30-36CH

3000

-55～175

175

27

34.0

38.0

5

ST30-39CH

3000

-55～175

175

30

37.0

41.0

5

ST30-43CH

3000

-55～150

150

33

40.0

45.0

5

ST30-47CH

3000

-55～150

150

37

42.0

52.0

5

ST30-58CH

3000

-55～150

150

45

52.0

64.0

5

ST30-63CH

3000

-55～150

150

53

59.8

66.1

5

ST30-68CH

3000

-55～150

150

58

64.4

71.2

5

ST30-75CH

3000

-55～150

150

61

70.0

79.0

5

ST30-82CH

3000

-55～150

150

67

74.0

90.0

5

ST30-100CH

3000

-55～150

150

80

90.0

110.0

5

Bi-directional TVS

Part Name

Absolute Maximum Ratings

Electrical Characteristics

PRSM[W]

Tstg[°C]

Tj[°C]

VR(DC)[V]

VBR [V]

IR max[uA]

min

max

DL30B-27CH

3000

-55～175

175

23

25.0

29.0

5

DL30B-30CH

3000

-55～175

175

24

28.0

32.0

5

DL30B-33CH

3000

-55～175

175

25

31.0

35.0

5

DL30B-36CH

3000

-55～175

175

27

34.0

38.0

5

DL30B-39CH

3000

-55～175

175

30

37.0

41.0

5

DL30B-43CH

3000

-55～150

150

33

40.0

45.0

5

DL30B-47CH

3000

-55～150

150

37

42.0

52.0

5

DL30B-58CH

3000

-55～150

150

45

52.0

64.0

5

DL30B-63CH

3000

-55～150

150

53

59.8

66.1

5

DL30B-68CH

3000

-55～150

150

58

64.4

71.2

5

DL30B-75CH

3000

-55～150

150

61

70.0

79.0

5

DL30B-82CH

3000

-55～150

150

67

74.0

90.0

5

DL30B-100CH

3000

-55～150

150

80

90.0

110.0

5

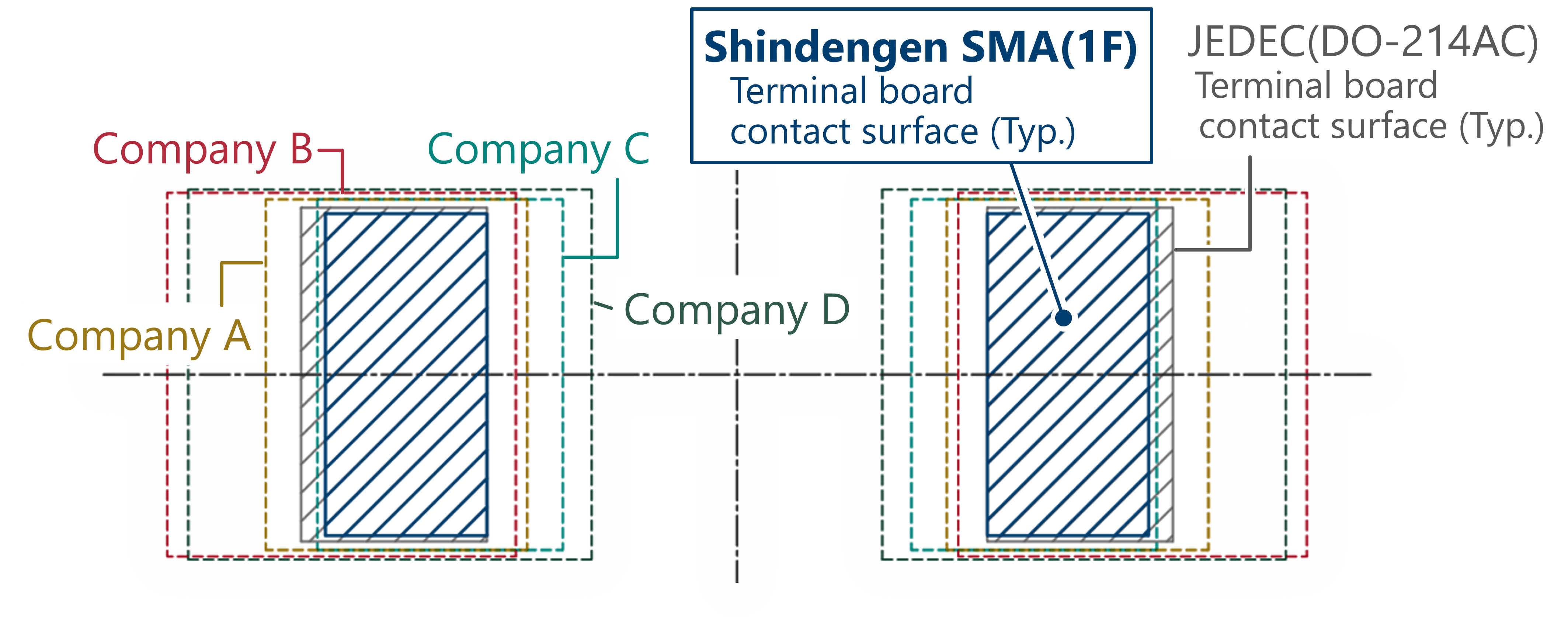

Footprint comparison
