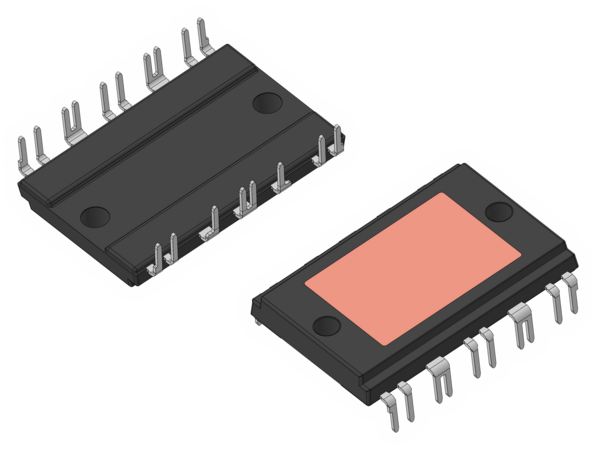

SiC-MOSFET power module MG074 series
Features
- SiC-MOS inside
- Low Inductance Technology Applied
Lineup
|
Part Name |
Circuit type |
VDSS[V] |
ID[A] |
Vth[V] |
RDS(on)[mΩ] |
Sample |
|
|
MG074D |
*1 |
4in1 |
750 |
95 |
Min. 2.8 |
Typ. 13 |
○ |
|
MG074E |
*1 |
4in1 |
750 |
51 |
Min. 2.8 |
Typ. 26 |
○ |
|
MG074F |
*1 |
4in1 |
750 |
31 |
Min. 2.8 |
Typ. 45 |
○ |
|
MG074G |
*2 |
4in1 |
750 |
TBD |
TBD |
Typ. 28 |
2025/3Q |
|
MG074H |
*2 |
4in1 |
750 |
TBD |
TBD |
Typ. 50 |
2025/3Q |
*1：Outsourced Chip
*2：In-house Chip
