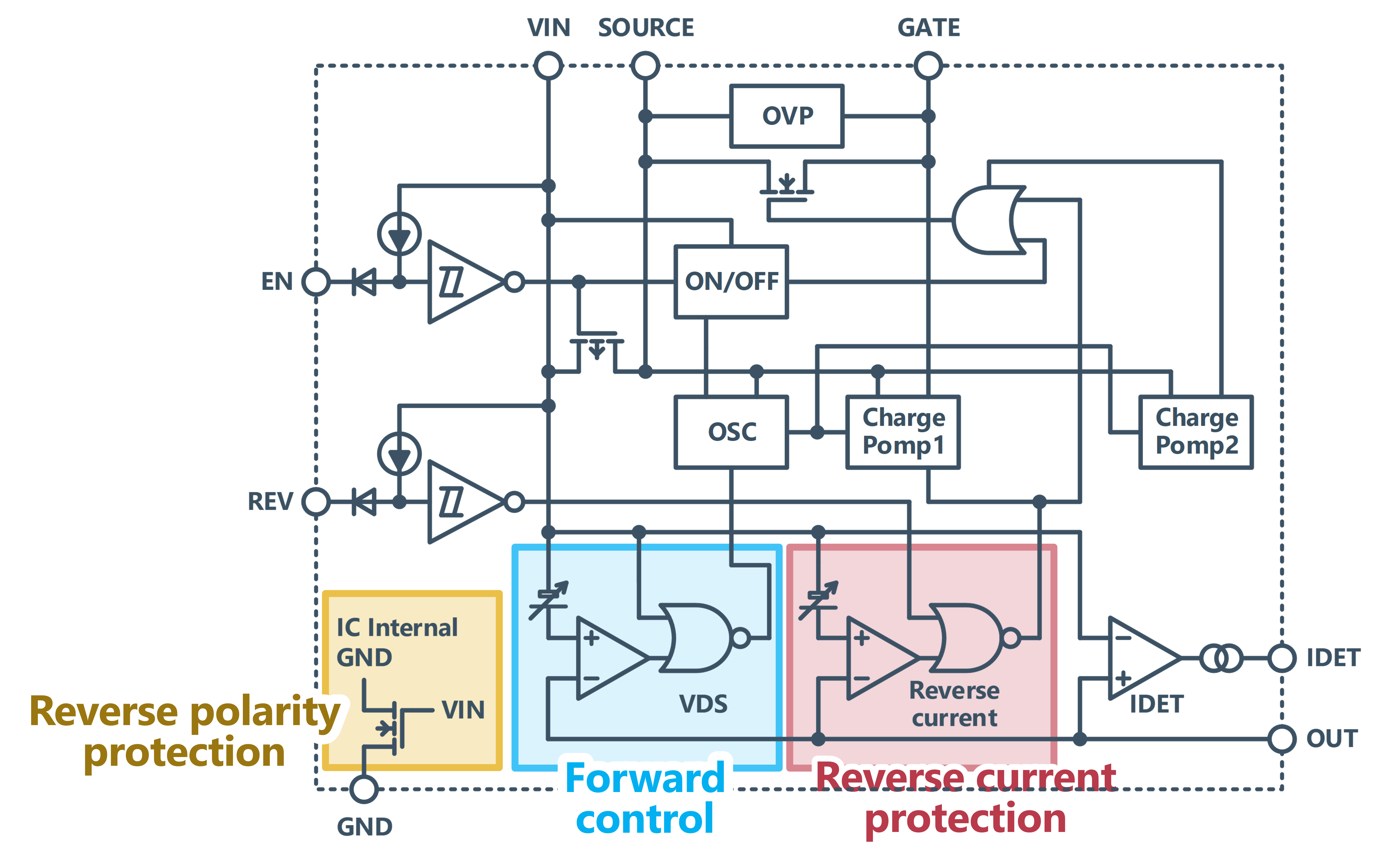

Block diagram

Specification

	MF2008SW
Rated input voltage	-40～70V
Operating voltage	4.5-65V
Operating current consumption	200μA
Stand by Current	≦5μA
Forward control voltage	30mV
Reverse current protection voltage (Vin - Vout)	<-10mV
Nch MOSFET Charge Current	75μA
AEC-Q100	◎
Status	◎
Package	TSSOP10

*Under Development

Application

•  Display-related ECUs (In-vehicle meters, HUD, IVI systems, etc.)
•  ECUs related to Advanced Driver Assistance System (ADAS)
•  ECUs related to Automated Driving (AD)

Features

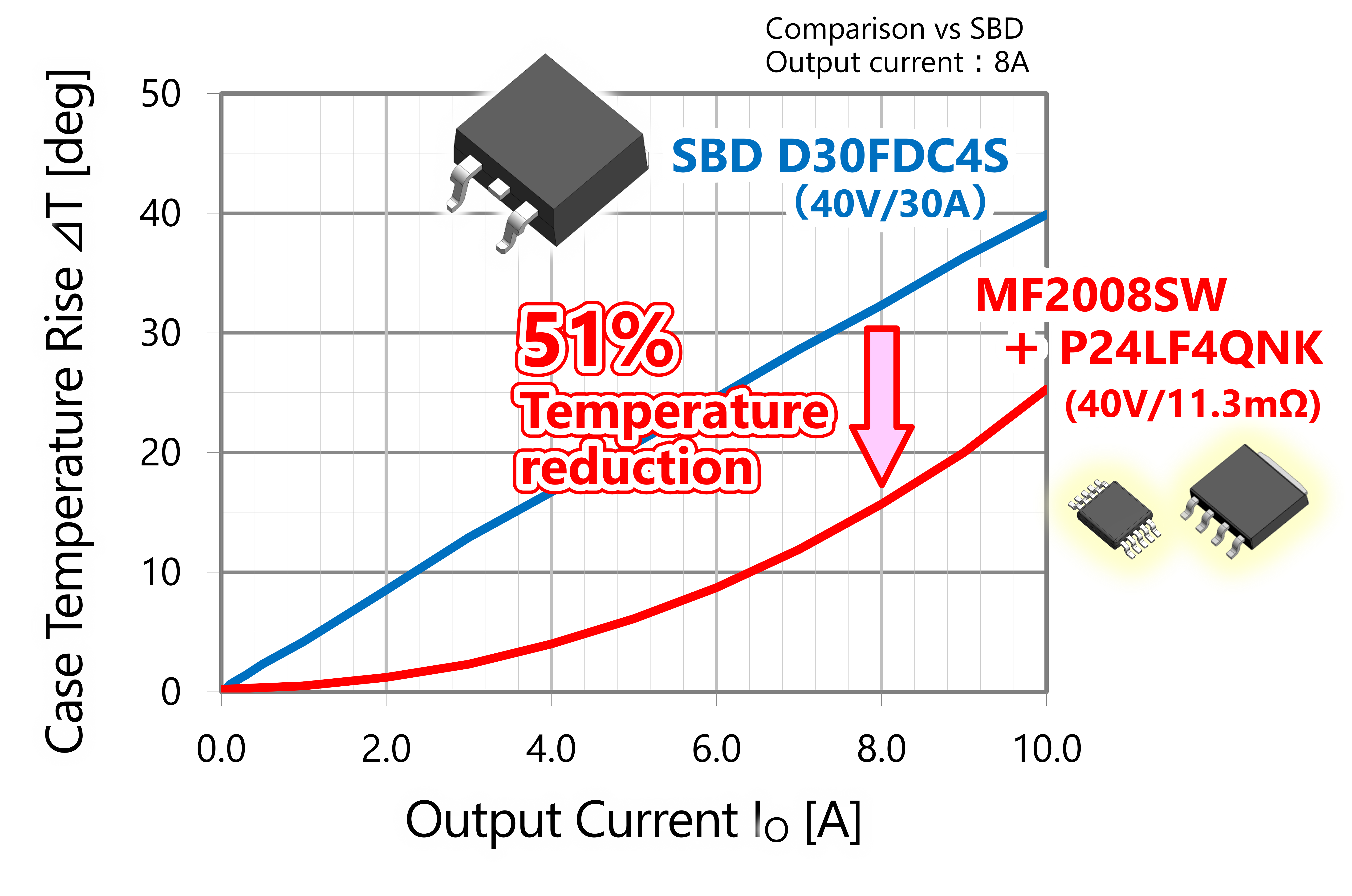

• Heat generation and loss reduction

By using a MOSFET as the element, heat generation and loss can be reduced compared with SBD.
Heat generation and loss depend on an external Nch MOSFET.

• Supports a high input voltage range

Supports a wide input voltage range of 4.5-65V, allowing it to be used in a variety of devices.

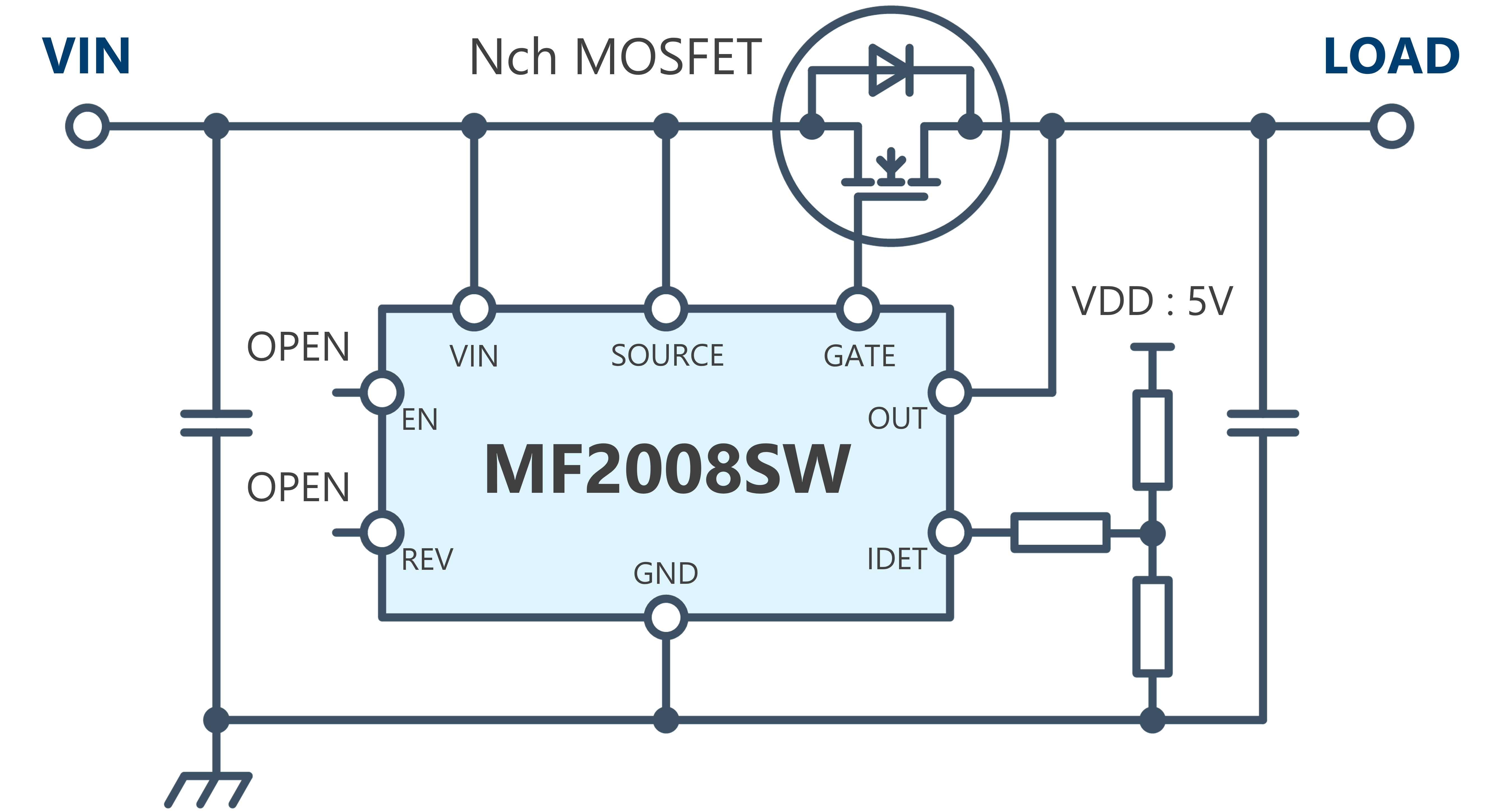

Example of Virtual Diode Circuit
