Features

①Increased Power Output at Low PRM
Compared with shunt type and series type, PCR can increase 25% in output.

②Lighter Vehicle Body
By reducing the ACG size, the vehicle body has become lighter.

③System Cost Reduction
By reducing ACG output vehicle system cost are reduced.

Specification

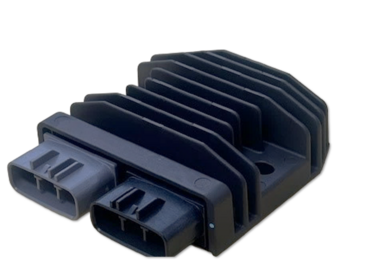

REG	Phase Control Reg
Line-up	L size	M size
Current@40℃(Average)	72.5/80.0A	49.5/50.0A
Maximum Current	80A	50A
Regulate Voltage	14.5±0.4

System overview
