PCU (Power Control Unit) / Potting-free PCU

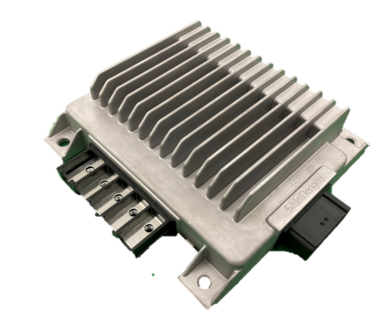

PCU
Features
①Make in India
We have started manufacturing our global product, PCU DU012 and DU015, at our plant in Bengaluru to extend the benefits of localized content for OEMs.
②Drivability
Real-Time detection of vehicle operating conditions coupled with swift response ensures smooth maneuverability.
③High Efficiency
The long cruising range is achieved through power supply technology that has been developed over half a century.
Specification
|
PCU Line-up |
2kWpk |
4kWpk |
6kWpk |
8kWpk |
10kWpk |
12kWpk |
|
House Name |
DU012 | TBD | DU015 | TBD | TBD | TBD |
|
Status |
MP |
Under Development |
MP |
Under Development until 2026 |
In Planning |
In Planning |
|
Input Operation Voltage |
High 30-59.9V |
High 30-59.9V |
High 30-59.9V |
High 30-59.9V |
High 30-59.9V |
High 30-59.9V |
|
Output Max Phase Current *Air Cooling |
Start:100Arms (140Apk) |
Start:130Arms (190Apk) |
Start:160Arms (230Apk) |
Start:200Arms (280Apk) |
Start:230Arms (325Apk) |
Start:270Arms (380Apk) |
|
Size (W*L*H mm) |
115*108*40 |
100*179*60 |
133*168*47 |
164*200*63 |
182.8*233*63 |
TBD |
|
Weight (kg) |
0.84 |
1.5 | 1.7 | 2.7 | 3.5 | TBD |
|
Motor Type |
3 Phase Synchronous Motor |
|||||

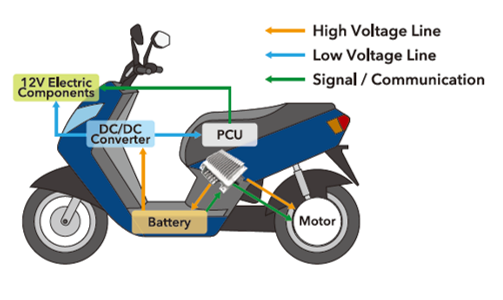

System overview

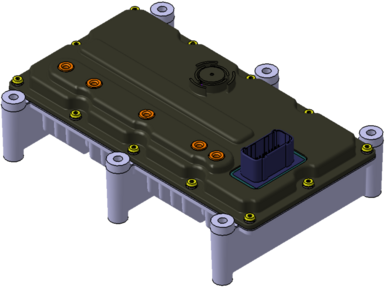

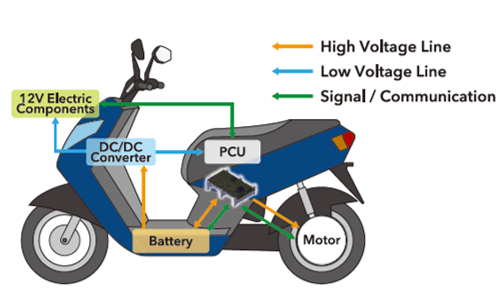

Potting-Free PCU
Features
①Light Weight and Low Power Consumption
The smaller and lighter parts reduce the weight of the vehicle body, improving fuel economy.
②Low Environmental Impact
By not using potting resin, we contribute to sustainability and environmental protection through advanced, sturdy manufacturing technology.
③Great Durability without Potting Resin
Although it does not use resin, it has the same level of durability and vibration resistance as products that do.
Specification
|
Status |
Under Development until 2027 |
|
Output |
8kWpk (Typ 4.8kW) |
|
Input Operation Voltage |
High 30-59.9V / Low8-16V |
|
Output Max Phase Current |
Start:200Arms (280Apk) |
|
Size (W*L*Hmm) *mounting part & connector excluded |
225*119*53 |
|
Weight (kg) |
1.3 |
