Power Control Unit

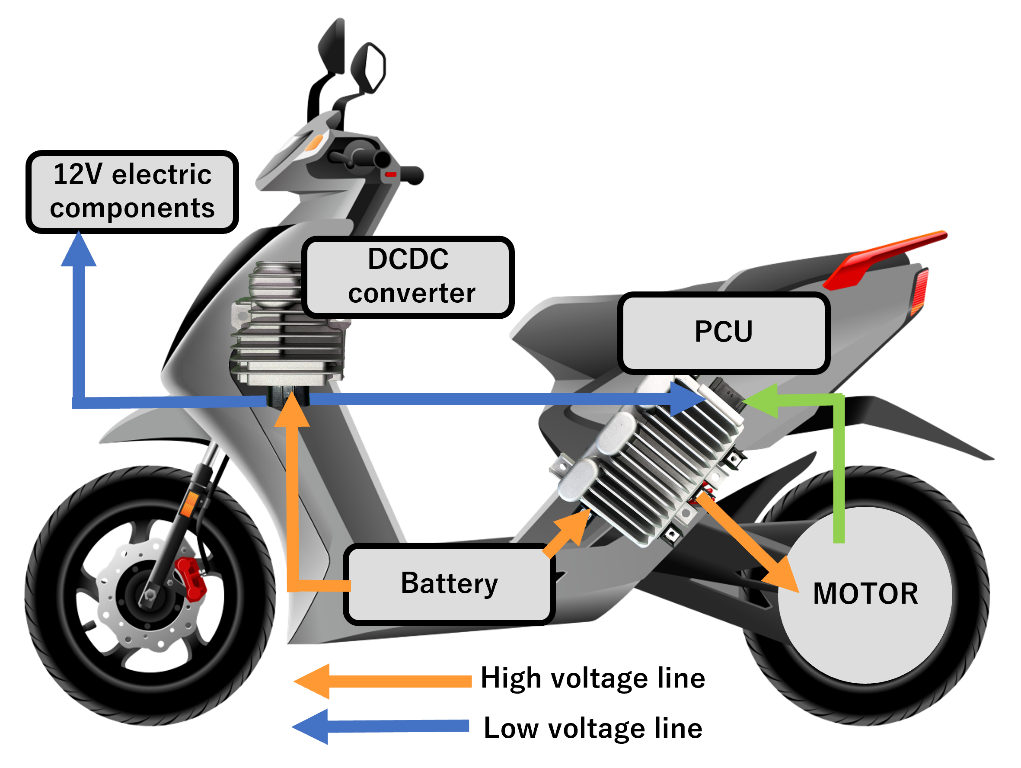

Comprehensive support for EV development. Drivability will be greatly improved.

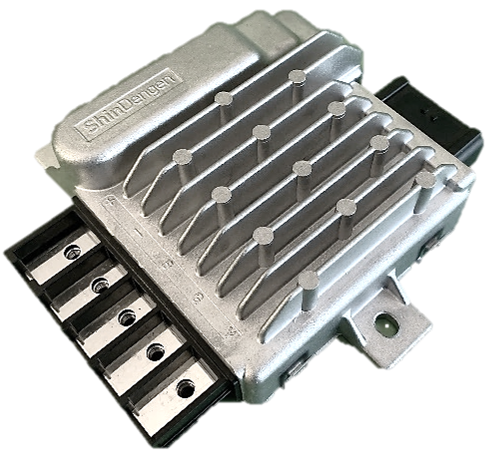

2kW PCU
| Ratings |
Input operation voltage |
High 30V-72V / Low 8V-16V |
|---|---|---|
| Output max phase current |
Start:100Arms-2sec
Operation:30Arms
※Air cooling
|
|
| Size |
Size(W*L*H mm)
※Excluding mounting part and connector
|
114.5 * 108 * 39.8 |
| Weight (kg) |
0.84 |
|
| Motor | Motor type |
3 phase synchronous motor |

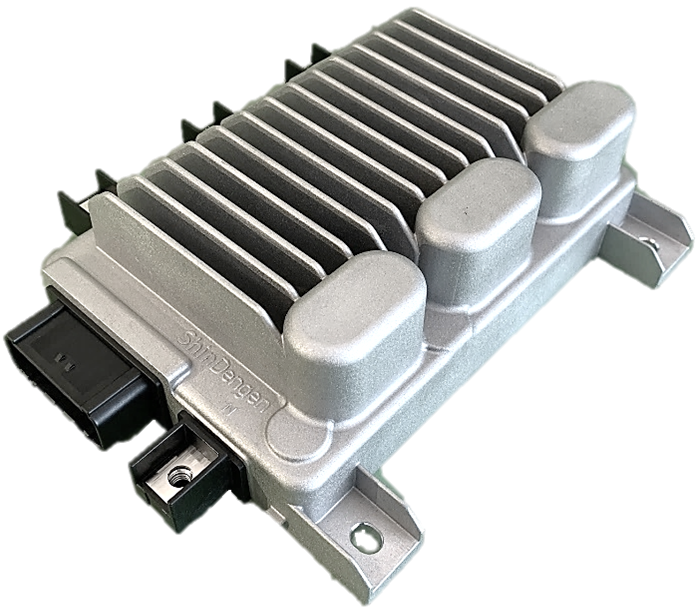

6kW PCU
| Ratings |
Input operation voltage |
High 30V-72V / Low 8V-16V |
|---|---|---|
| Output max phase current |
Start:230Arms-2sec Operation:100Arms |
|
| Size |
Size(W*L*H mm)
※Excluding mounting part and connector
|
130 * 167 * 58 |
| Weight (kg) |
1.6 |
|
| Motor | Motor type |
3 phase synchronous motor |

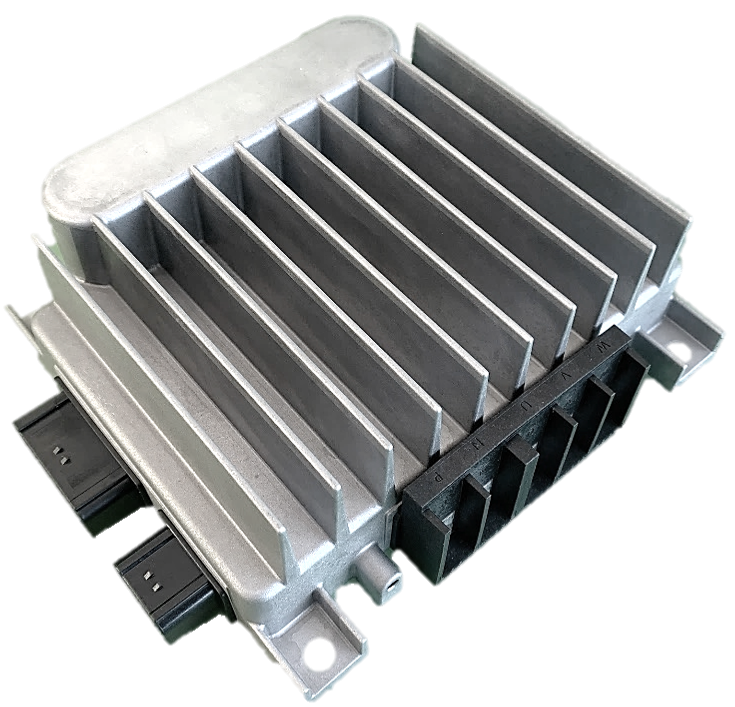

6.5kW PCU
| Ratings |
Input operation voltage |
High 70V-120V / Low 8V-16V |
|---|---|---|
| Output max phase current |
Start:230Arms-3sec Operation:85Arms |
|
| Size |
Size(W*L*H mm)
※Excluding mounting part and connector
|
144.2 * 178.2 * 63.4 |
| Weight (kg) |
2.5 |
|
| Motor | Motor type |
3 phase synchronous motor |
