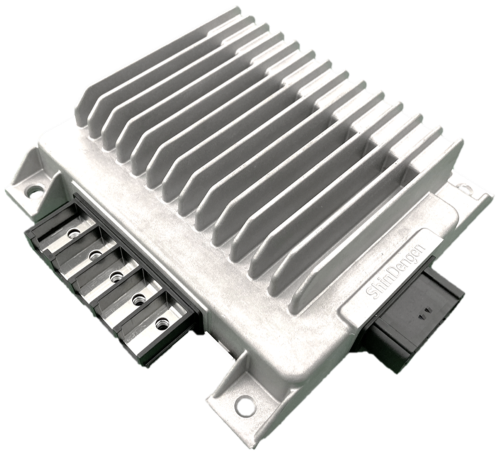

Power Control Unit for EV 2 Wheelers

Our advanced Indian motor controller Made in India provides a smoother ride and longer range,
reflecting the quality and innovation of Japanese engineering,
making your exploration towards EV more comfortable and confident.

Features

✓Make in India
 We have our factory in Bangalore and the mass production of 2kw motor controller have already started.

✓High Efficiency
 Power supply technology cultivated for more than half a century extends the range of your vehicles.

✓Drivability
 Real-time detection of vehicle condition helps in smooth vehicle operation.

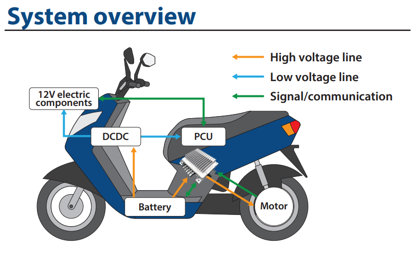

System overview

Specification

PCU
Line up

Target EV capacity
House name

2kWpk  (Typ1.2kW)
DU012

6kWpk  (Typ2.0~3.6kW)
DU015

8kWpk  (Typ3.6~4.8kW)
In development
Ratings Input operation voltage

High 30V-60V / Low 8V-16V

High 30V-60V / Low 8V-16V

High 30V-60V / Low 8V-16V
Output max phase current

Start:100Arms(140Apk)-2sec
Operation:30Arms
※Air cooling

Start:160Arms(230Apk)-3sec
Operation:60Arms
※Air cooling

Start:220Arms(320Apk)-3sec
Operation:80Arms
※Air cooling
Size
Size (W*L*H mm)
※Excluding mounting part and connector

115*108*40

133*168*47

164 * 210 * 45
Weight (kg)

0.84

1.6

2.7
Motor Motor type

3 phase synchronous motor

Shindengen Prorducts Catalog for Bharat Mobility Global Expo 2024.
