- Power MOSFET for EV 2 Wheelers
Power MOSFET for EV 2 Wheelers
TOLL Package Product
Large current 100V/200V power MOSFET LG(TOLL) package.
Features and strengths
•Tch 175degC, Small & Thin PKG for Automotive
•High Current capability and low on resistance

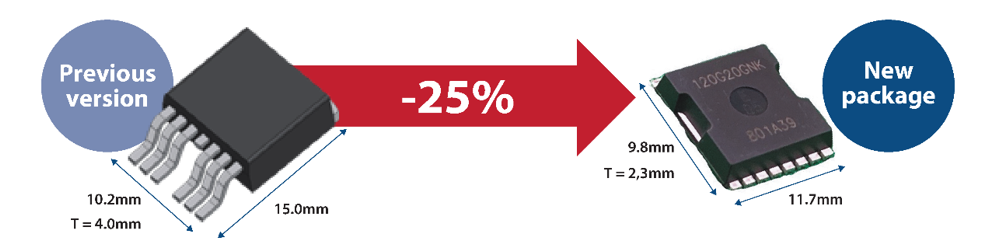

•Board mounting space reduced by 25% as below compared to previous version.
Specification
|
Part Name |
VDS(min)[V] |
ID(max)[A] |
VTH(typ)[V] |
Ron[mΩ] |
Ciss VDS=25V |
Coss VDS=25V |
Crss VDS=25V |
Status | |
|---|---|---|---|---|---|---|---|---|---|
|
(typ) |
(max) | ||||||||
|
P232LG10GNK |
100 |
232 |
3.0 |
1.83 |
2.20 |
8140 |
1425 |
27 | RS |
|
P166LG15GNK |
150 |
166 |
3.0 |
3.56 |
4.45 |
TBD | TBD | TBD | In development |
|
P120LG20GNK |
200 |
120 |
3.0 |
7.8 |
9.8 |
5822 |
447 |
27 | RS |
LF Package Product

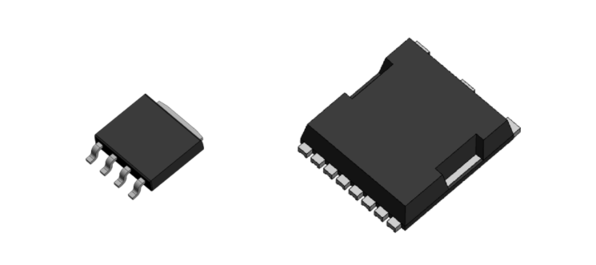

EETMOS 5 series LF package
Features and strengths
•Tch=175℃ PKG for Automotive Application.
•5×6mm dimension（equivalent footprint to SOP8、HSON）
•By adopting Cu-Clip、Lower Rdson・High Current（～180A）
•By having Gull-Wings lead type in one side, mechanical stress onto PCB is relieved.
•Low noise
Specification
|
Part Name |
VDS(min)[V] |
ID(max)[A] |
VTH(typ)[V] |
Ron[mΩ] |
Ciss VDS=25V |
Coss VDS=25V |
Crss VDS=25V |
Status | |
|---|---|---|---|---|---|---|---|---|---|
|
(typ) |
(max) | ||||||||
|
P180LF4RNK |
40 |
180 |
3.0 |
0.72 |
0.90 |
6064 |
1847 |
158 | In development |
|
P120LF6RNK |
60 |
120 |
3.0 |
1.14 |
1.43 |
5258 | 2193 | 100 | In development |
|
P96LF4PQLK |
-40 |
-96 |
-2.0 |
3.1 |
3.9 |
5413 |
802 |
459 | RS |
|
P63LF6PQLK |
-60 |
-63 |
2.0 |
6.8 |
8.5 |
5515 |
561 |
321 | RS |
Shindengen Prorducts Catalog for Bharat Mobility Global Expo 2024.
