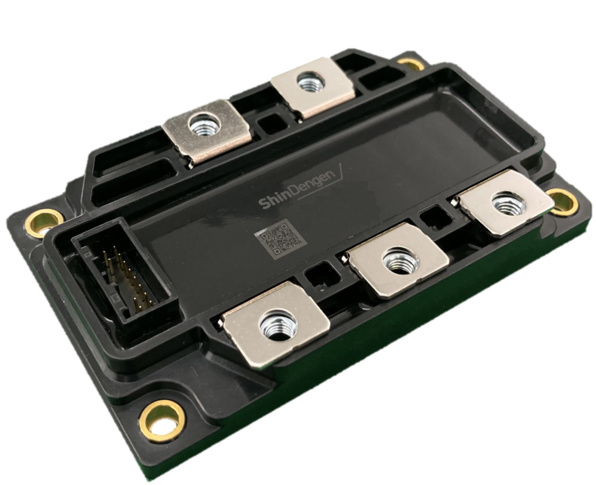

Power Module
Progressed invertor Integrated Motor with our modules.
Our module can integrate FETs more efficiently than discrete implementation
and it contributes to miniaturization of invertor.
Advantage of Module
✓The main advantage of the MODULE is that FETs can be integrated.
✓Since it is box connector, it can be connected one touch
✓Large current is achieved because heat is dissipated not only directly under the chip but also from the clip terminal.
Specification
|
Product |
VDSS |
ID |
Thermal |
RDS(ON Typ) |
Weight |
|---|---|---|---|---|---|
|
MG055F |
100V |
420A |
0.25℃/W |
0.64mΩ |
180g |
|
MG055N |
200V |
220A |
0.31℃/W |
3.15mΩ |
180g |
Shindengen Prorducts Catalog for Bharat Mobility Global Expo 2024.
